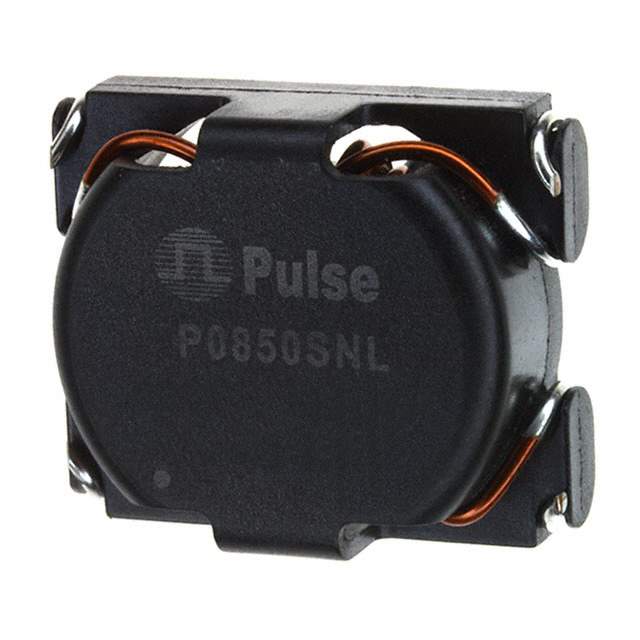

Same model may have multiple batches, images only for reference.

P0850SNL

Name: P0850SNL
Brand: Pulse
SKU: 1383112
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	P0850SNL
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 23UH 5A 13 MOHM SMD / 23 µH Shielded Toroidal Inductor 5 A 13mOhm Nonstandard
Datasheet	P0850SNL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Pulse
Series	Bigfoot
Package	Tube
Type	Toroidal
Material - Core	-
Inductance	23 µH
Tolerance	±20%
Current Rating (Amps)	5 A
Current - Saturation (Isat)	-
Shielding	Shielded
DC Resistance (DCR)	13mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Temperature Range - Operating	-40°C ~ 130°C
Features	-
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	-
Size / Dimension	1.220" L x 1.000" W (30.99mm x 25.40mm)
Height - Seated (Max)	0.500" (12.70mm)
Moisture Sensitivity Level (MSL)	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Standard Package	20 pcs
Win Source Part Number	1383112-P0850SNL
Ultra Librarian 3D Model	Ultra Librarian P0850SNL CAD Model

Alternative Products

Description

The 1383112-P0850SNL is a fixed inductor from Pulse.

Series: Bigfoot
Type: Toroidal
Shielding: Shielded
Package: Tube
Size: 1.220" L x 1.000" W (30.99mm x 25.40mm)
Inductance: 23 µH
Maximum Seated Height: 0.500" (12.70mm)
Tolerance: ±20%
DC Resistance (DCR): 13mOhm
Current Rating: 5A
Operating Temperature: -40°C to 130°C
