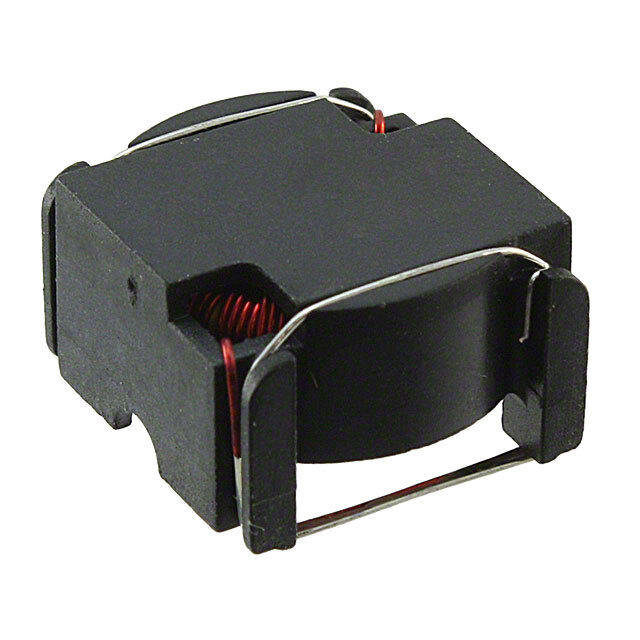

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Package Tube
Product Status Active
Type Toroidal
Inductance 112 µH
Tolerance ±20%
Current Rating (Amps) 1.26 A
Shielding Shielded
DC Resistance (DCR) 300mOhm
Operating Temperature -40°C ~ 130°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.620" L x 0.600" W (15.75mm x 15.24mm)
Height - Seated (Max) 0.390\
Ultra Librarian 3D Model Ultra Librarian PE-53829SNL CAD Model

Description

NULL
