Same model may have multiple batches, images only for reference.

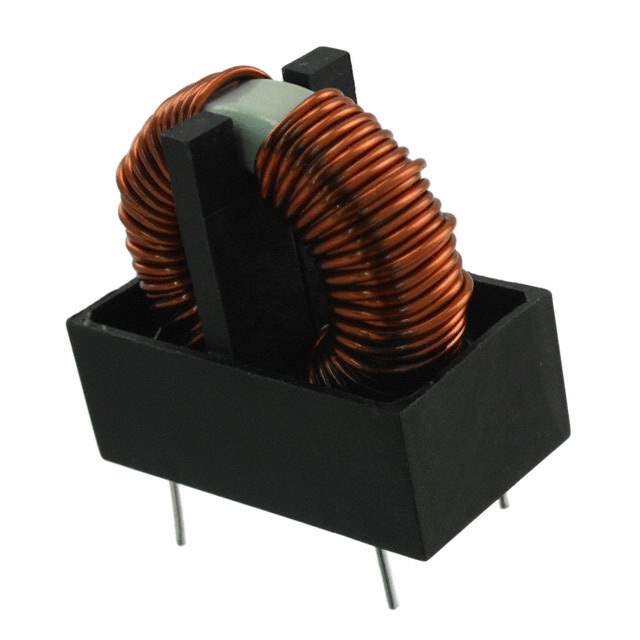

PE-62915NL Real Image
Same model may have multiple batches, images only for reference.

PE-62915NL

Part No PE-62915NL
Manufacturer Pulse
Catalog Common Mode Chokes
Description CMC 8MH 3.2A 2LN TH
Datasheet
PE-62915NL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Pulse Electronics Corporation
Packaging Tray
Status Active
Number of Lines 2
Inductance @ Frequency 8mH @ 1kHz
Current Rating (Max) 3.2A
DC Resistance (DCR) (Max) 120 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting Through Hole
Height (Max) 1.510" (38.35mm)
Dimension Vertical, 4 PC Pin
Win Source Part Number 209761-PE-62915NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian PE-62915NL CAD Model

Description

The Pulse Electronics Corporation 209761-PE-62915NL filter is a high-performance component that can handle a current rating of 3.2A.

  • Manufacturer: Pulse Electronics Corporation
  • Part Number: 209761-PE-62915NL
  • Current Rating: 3.2A
  • Inductance: 8mH @ 1kHz
  • Height: 1.510" (38.35mm)
  • Mounting Type: Through-hole
  • DC Resistance (DCR) (Max): 120 mOhm
  • Temperature Range: -40°C to 125°C
  • Application: Filters
