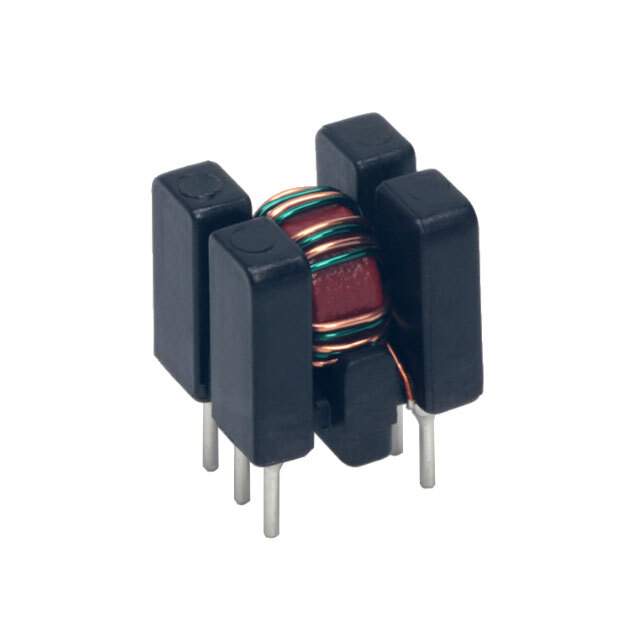

SH-212 Real Image
Same model may have multiple batches, images only for reference.

SH-212

Part No SH-212
Manufacturer Kemet
Catalog Common Mode Chokes
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Common Mode Chokes
Mfr KEMET
Series SH
Package Bulk
Filter Type Power Line
Number of Lines 2
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 23mOhm
Voltage Rating - DC 150V
Temperature Range - Operating -25°C ~ 80°C
Mounting Type Through Hole
Height (Max) 0.374" (9.50mm)
Package / Case Vertical, 4 PC Pin
Other Names 399-19660,UDLSH002120000
Standard Package 1,000
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1276861-SH-212
Ultra Librarian 3D Model Ultra Librarian SH-212 CAD Model

Description

The KEMET SH-212 is a common mode choke filter designed for power line applications.

  • Manufacturer:KEMET
  • Series: SH
  • Voltage Rating (DC): 150V
  • Maximum Current Rating: 3A
  • DC Resistance: 23mOhm
  • Mounting: Through Hole
  • Package/Case: Vertical, 4 PC pin
  • Operating Temperature Range: -25°C to 80°C
  • Package: Bulk
  • Standard Packages: 1000
