Products specifications

Categories Transformers
Manufacturer Pulse Electronics Corporation
Packaging Tube/Rail
Status Active
Transformer Type T1/E1 (Dual)
Inductance 1.2mH, 1.2mH
Mounting SMD (SMT)
Height - Seated (Max) 0.245" (6.22mm)
Weight 0.04 oz (1.14g)
Win Source Part Number 137629-TX1099NL
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TX1099NL CAD Model

Description

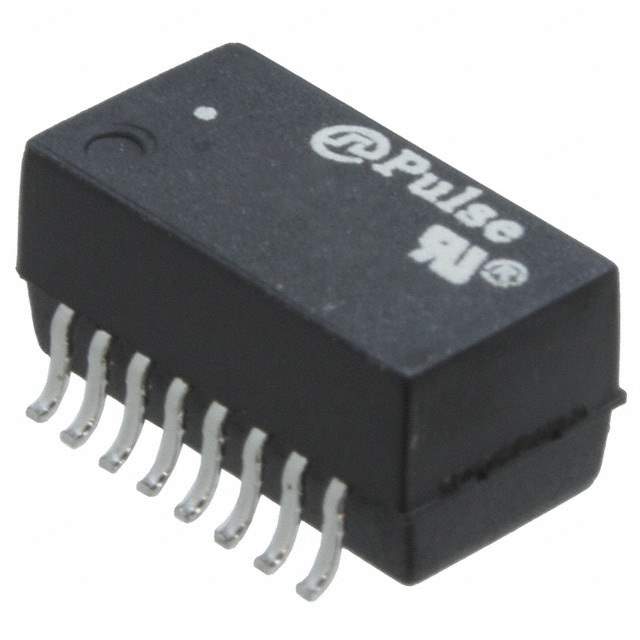

The TX1099NL is a Gigabit Ethernet transformer module manufactured by Pulse Electronics. It is designed to provide signal isolation and impedance matching for 10/100/1000Base-T Ethernet applications. This transformer is a critical component in ensuring reliable data transmission and protecting Ethernet devices from voltage surges and electrical noise.

Applications

  • Gigabit Ethernet networking
  • Network Interface Cards (NICs)
  • Routers and switches
  • Embedded systems with Ethernet connectivity
  • Industrial control systems

Features

  • Supports 10/100/1000Base-T Ethernet
  • Surface mount design
  • Compliant with IEEE 802.3ab standard
  • High isolation voltage
  • Low insertion loss
  • Excellent common mode rejection
  • RoHS compliant

Benefits

  • Reliable Gigabit Ethernet performance: Provides robust signal isolation and impedance matching for high-speed data transmission.
  • Easy integration: Surface mount design simplifies assembly and reduces manufacturing costs.
  • Protection against voltage surges: High isolation voltage safeguards network devices from damage.
  • Compliant with industry standards: Ensures compatibility with a wide range of Ethernet devices.
  • Improved signal integrity: Low insertion loss and excellent common mode rejection minimize signal degradation.

Additional Details

The TX1099NL is designed to meet the demanding requirements of Gigabit Ethernet applications. The surface mount package facilitates automated assembly, leading to increased production efficiency. The high isolation voltage provides a crucial layer of protection against potentially damaging voltage transients. The transformer's performance characteristics are carefully optimized to minimize signal distortion and maximize data transmission efficiency. The device adheres to the IEEE 802.3ab standard, ensuring seamless interoperability with other Gigabit Ethernet components. It is constructed with high-quality materials and undergoes rigorous testing to ensure long-term reliability in various operating conditions. This part number is also available in a tape and reel version for automated pick and place machines.
