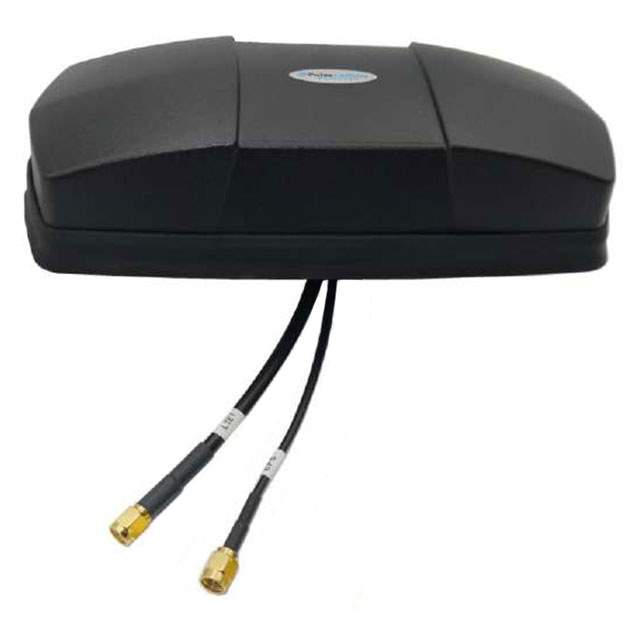

ARM21011DM Real Image
Same model may have multiple batches, images only for reference.

ARM21011DM

Part No ARM21011DM
Manufacturer PulseLarsen Antennas
Catalog RF Antennas
Description RF ANT 829MHZ/1.582GHZ MODULE / 829MHz, 1.582GHz, 2.2GHz General Purpose Module RF Antenna 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz 4.6dBi, 4.9dBi, 5.3dBi, 6.6dBi SMA Male (2) Adhesive, Magnetic
Datasheet
ARM21011DM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr PulseLarsen Antennas
Series ARMADILLO
Package Bulk
Frequency Group Wide Band
Frequency (Center/Band) 829MHz, 1.582GHz, 2.2GHz
Frequency Range 698MHz ~ 960MHz, 1.559GHz ~ 1.606GHz, 1.71GHz ~ 2.69GHz
Antenna Type Module
Number of Bands 2
VSWR 2, 2.5
Gain 4.6dBi, 4.9dBi, 5.3dBi, 6.6dBi
Features Cable - 5.18m, LNA
Termination SMA Male (2)
Ingress Protection IP67
Mounting Type Adhesive, Magnetic
Height (Max) 1.772" (45.00mm)
Applications General Purpose
MSL Level 1 (Unlimited)
ECCN 7A994
HTSUS 8529.10.9100
Other Names 1837-1072,-1839-ARM21011DM
Standard Package 1
Win Source Part Number 1088641-ARM21011DM
Ultra Librarian 3D Model Ultra Librarian ARM21011DM CAD Model

Description

The PulseLarsen Antennas ARMADILLO RF antenna is a wideband module that operates in the frequency range of 698MHz to 960MHz, 1.559GHz to 1.606GHz, and 1.71GHz to 2.69GHz.

  • Gain: 4.6dBi, 4.9dBi, 5.3dBi, and 6.6dBi
  • VSWR: 2 and 2.5
  • Termination: SMA Male connectors
  • Cable Length: 5.18m
  • Suitable for: General-purpose applications
  • Ingress Protection: IP67
  • Mounting: Adhesive or Magnetic
