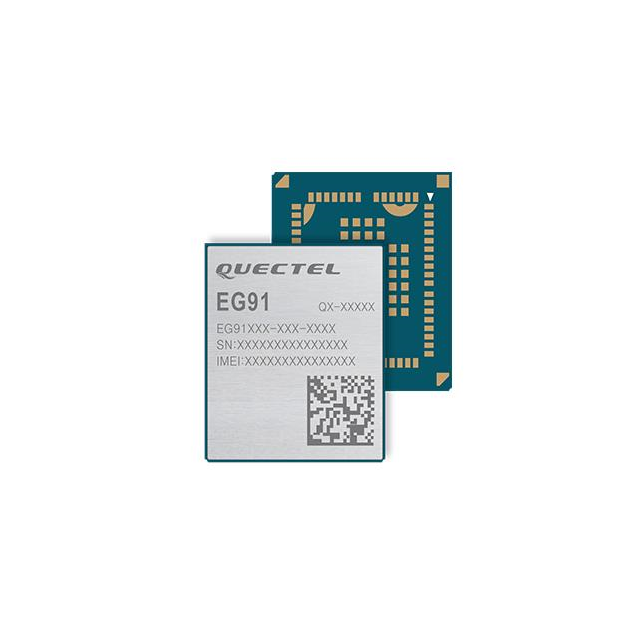

Same model may have multiple batches, images only for reference.

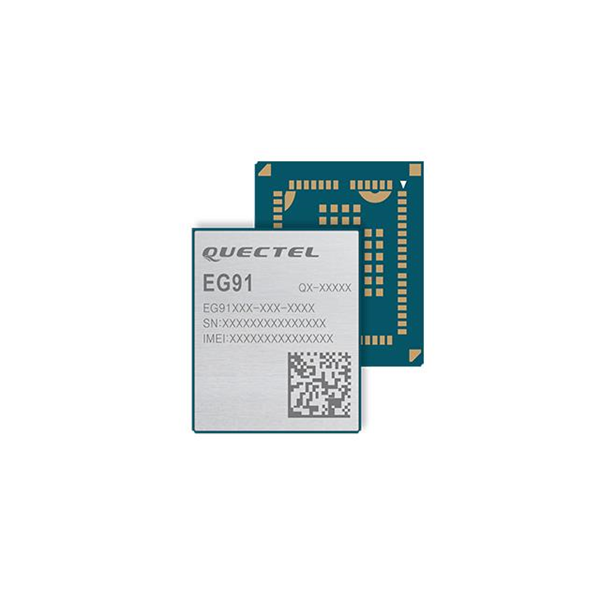

EG91NAFB-512-SGNS Real Image
Same model may have multiple batches, images only for reference.

EG91NAFB-512-SGNS

Part No EG91NAFB-512-SGNS
Manufacturer Quectel
Catalog RF Transceiver Modules
Description RF TXRX MOD CELLULAR SMD / Cellular, Navigation BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, UMTS, WCDMA Transceiver Module Antenna Not Included Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Quectel
Package Tape & Reel
RF Family/Standard Cellular, Navigation
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, UMTS, WCDMA
Data Rate 42Mbps
Serial Interfaces I²C, PCM, SPI, UART, USB
Antenna Type Antenna Not Included
Voltage - Supply 3.3V ~ 4.3V
Current - Receiving 29mA
Current - Transmitting 29mA
Mounting SMD (SMT)
Temperature Range - Operating -35°C ~ 75°C
Package / Case Module
Base Product Number EG91
MSL Level 3 (168 Hours)
Other Names 2958-EG91NAFB-512-SGNSTR,2958-EG91NAFB-512-SGNSDKR,2958-EG91NAFB-512-SGNSCT
Standard Package 250
Win Source Part Number 1228226-EG91NAFB-512-SGNS
Ultra Librarian 3D Model Ultra Librarian EG91NAFB-512-SGNS CAD Model

Description

The EG91NAFB-512-SGNS is an RF transceiver module that is part of the EG91 family.

  • Manufacturer: Quectel
  • Package: Tape and Reel
  • Standard Package: 250
  • Category: RF/IF and RFID
  • Protocols: BeiDou, Galileo, GLONASS, GPS, GNSS, LTE, UMTS, and WCDMA
  • Data Rate: 42Mbps
  • Current Receiving: 29mA
  • Current Transmitting: 29mA
  • MSL Level: 3 (168 hours)
  • Other Names: 2958-EG91NAFB-512-SGNSTR, 2958-EG91NAFB-512-SGNSDKR, and 2958-EG91NAFB-512-SGNSCT
