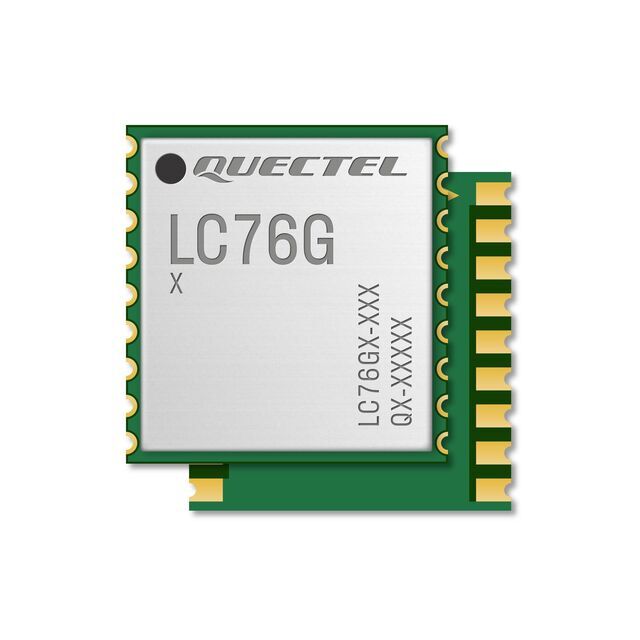

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and WirelessRF Transceiver Modules and Modems
Mfr Quectel
Series LC76G
Part Status Active
RF Family/Standard Navigation
Protocol BeiDou, Galileo, GLONASS, GPS, GNSS
Frequency 1.561GHz, 1.575GHz, 1.602GHz
Sensitivity -166dBm
Serial Interfaces I2C, UART
Antenna Type Antenna Not Included
Utilized IC / Part AG3352
Voltage - Supply 2.55V ~ 3.6V
Mounting Type Surface Mount
Operating Temperature -40°C ~ 85°C
Package / Case 28-SMD Module
Base Product Number LC76
Ultra Librarian 3D Model Ultra Librarian LC76GPAMD CAD Model
