Products specifications

Win Source Part Number WS1202737-YM0003AA
Manufacturer Quectel
Category Cable Assemblies -Coaxial Cables (RF)
Package Bag
Product Status Active
Style IPEX MHF1 to SMA
1st Connector IPEX MHF1 Plug, Right Angle
Length 3.937" (100.00mm)
Cable Type 1.13mm OD Coaxial Cable
Overall Impedance 50 Ohms
Color Black
Ultra Librarian 3D Model Ultra Librarian YM0003AA CAD Model

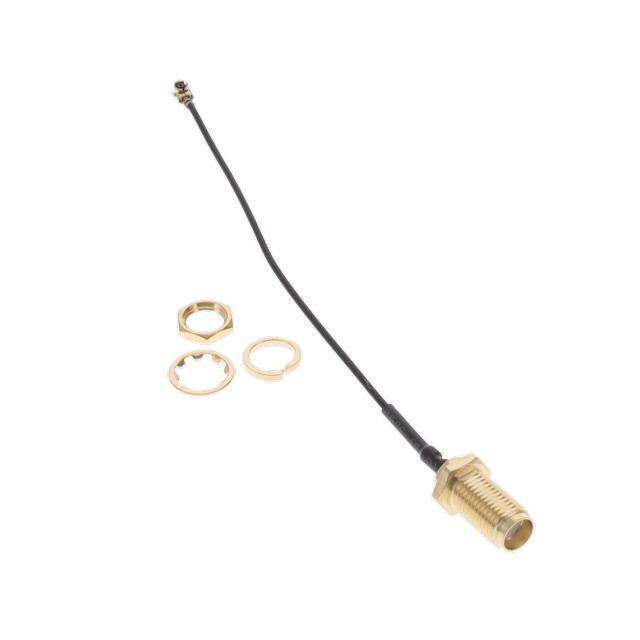

Description

The 1202737 is a high-quality coaxial cable assembly manufactured by Quectel.

  • Type: Coaxial Cable Assembly
  • Color: Black
  • Length: 3.937" (100.00mm)
  • Cable Type: 1.13mm OD Coaxial Cable
  • Connector Configuration: IPEX MHF1 to SMA
  • Connector 1: IPEX MHF1 plug (Right Angle)
  • Status: Active
  • Impedance: 50 Ohms
