Same model may have multiple batches, images only for reference.

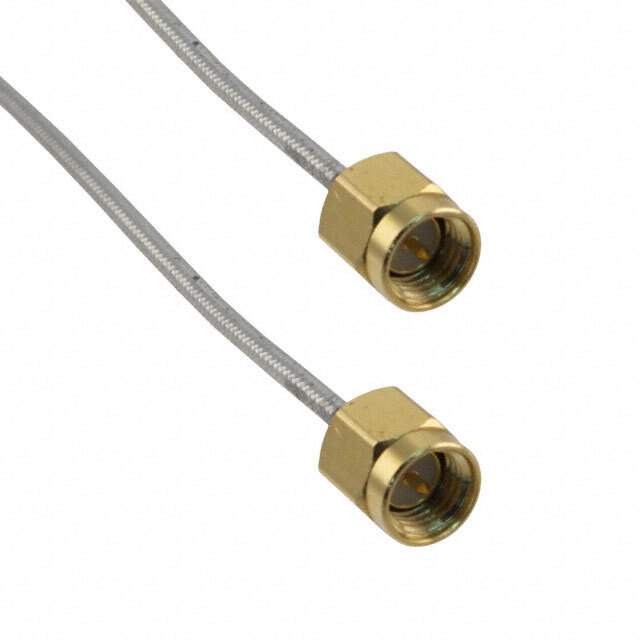

135101-R1-10.00 Real Image
Same model may have multiple batches, images only for reference.

135101-R1-10.00

Part No 135101-R1-10.00
Manufacturer Amphenol
Catalog Coaxial Cables (RF)
Description CBL ASSY SMA PLUG-PLUG .085 10" / Cable Assembly Coaxial SMA to SMA Hand Formable .085 10.000" (254.00mm)
Datasheet
135101-R1-10.00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Cable Assemblies>Coaxial Cables (RF)
Mfr Amphenol RF
Package Bag
Style SMA to SMA
1st Connector SMA Plug
1st Contact Gender Male
1st Connector Mounting Type Free Hanging (In-Line)
2nd Connector SMA Plug
2nd Contact Gender Male
2nd Connector Mounting Type Free Hanging (In-Line)
Length 10.000" (254.00mm)
Cable Type Hand Formable .085
Overall Impedance 50 Ohms
Frequency - Max 12.4 GHz
Color Gray
Base Product Number 135101
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8544.20.0000
Other Names 135101R11000,ACX1670
Standard Package 1
Win Source Part Number 1192618-135101-R1-10.00
Ultra Librarian 3D Model Ultra Librarian 135101-R1-10.00 CAD Model

Description

The Amphenol RF 135101R11000, ACX1670 is a SMA to SMA style cable assembly with a length of 10.000 inches (254.00mm).

  • Cable: Hand-formable .085
  • Maximum Frequency: 12.4 GHz
  • Overall Impedance: 50 Ohms
  • First Connector: SMA Plug
  • Second Connector: SMA Plug
  • Package: Bag
  • REACH: Affected
  • Mfr: Amphenol RF
  • HTSUS: 8544.20.0000
  • Base Product Number: 135101
