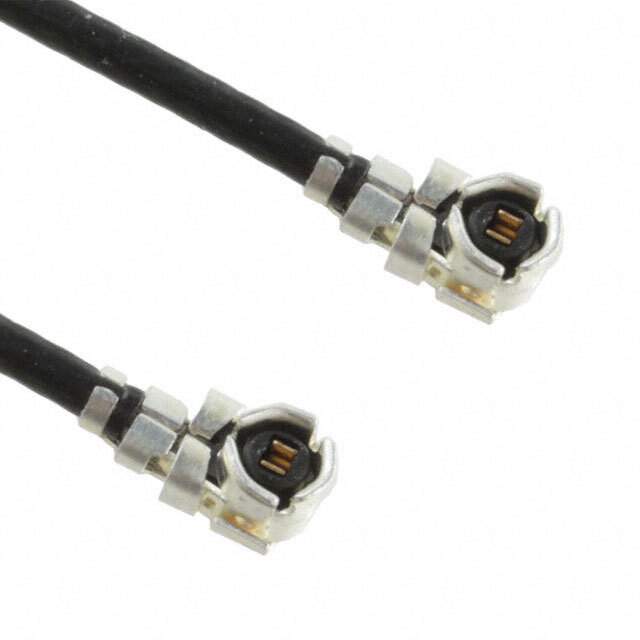

RF2192 Real Image
Same model may have multiple batches, images only for reference.

RF2192

Part No RF2192
Manufacturer RF Micro Devices
Catalog Coaxial Cables (RF)
Description CONN JUMPER AMC PLUG-PLUG 370MM
Datasheet
RF2192 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Cable Assemblies
Manufacturer Amphenol RF Division
Status Active
Gender Female to Female
Style UMCC to UMCC
1st Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
2nd Connector Ultra Miniature Coaxial Plug Female Socket, Right Angle
Length 14.56" (369.70mm)
Cable Type 1.13mm OD Coaxial Cable
Impedance 50 Ohm
Maximum Input Frequency 6GHz
Color Black
Features Shielded
Temperature Range - Operating -40°C to 90°C
Win Source Part Number 182725-RF2192
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian RF2192 CAD Model

Description

The Amphenol RF Division 182725-RF2192 is a shielded female to female cable assembly designed to provide a reliable connection for high-frequency applications.

  • Length: 14.56 inches (369.70mm)
  • Cable Type: 1.13mm OD coaxial cable
  • Impedance: 50 Ohm
  • Maximum Input Frequency: 6GHz
  • Style: UMCC to UMCC
  • Connectors: Ultra miniature coaxial plug female socket, right angle connectors on both ends
  • Temperature Range: -40°C to 90°C
  • Category: Cable assemblies
  • Status: Active
