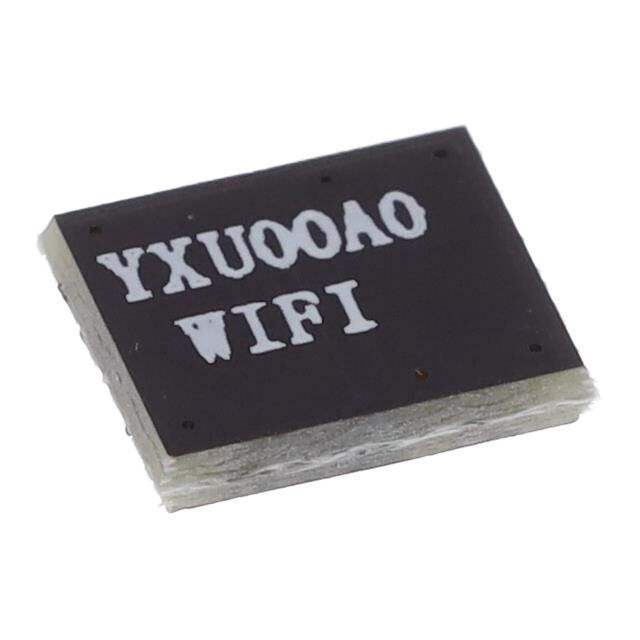

YXU00A0AA Quectel
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Active
RF Family/Standard Bluetooth, WiFi
Frequency Group UHF (2 GHz ~ 3 GHz), SHF (f > 4 GHz)
Frequency (Center/Band) 2.45GHz, 6.15GHz
Frequency Range 2.4GHz ~ 2.5GHz, 5.15GHz ~ 7.15GHz
Antenna Type Chip
Number of Bands 2
Grade -
Mounting Type Surface Mount
Height (Max) 0.063" (1.60mm)
Applications Bluetooth, Wi-Fi
Ultra Librarian 3D Model Ultra Librarian YXU00A0AA CAD Model

Description

RF ANTENNA Bluetooth, Wi-Fi Chip Surface Mount
