Same model may have multiple batches, images only for reference.

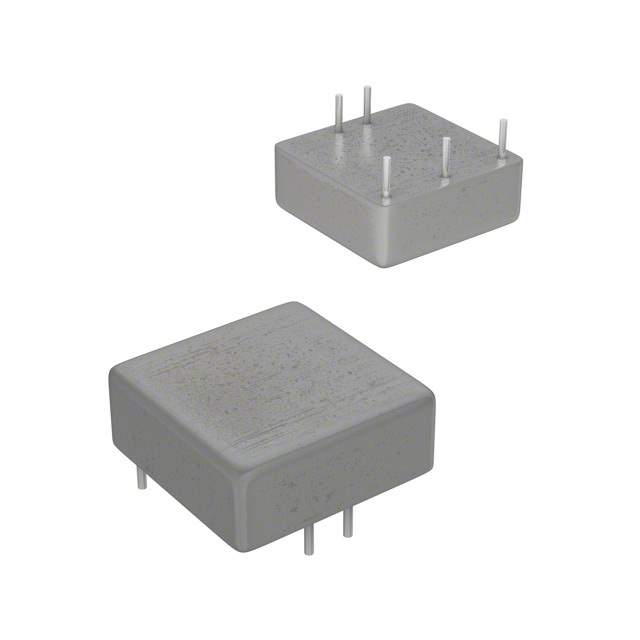

RP15-2405SAW Real Image
Same model may have multiple batches, images only for reference.

RP15-2405SAW

Part No RP15-2405SAW
Manufacturer Recom Power
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 15W / Isolated Module DC DC Converter 1 Output 5V 3A 9V - 36V Input
Datasheet
RP15-2405SAW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Recom Power
Series POWERLINE RP15-AW (15W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 3A
Power (Watts) 15 W
Voltage - Isolation 1.6 kV
Applications ITE (Commercial)
Features OCP, OVP, SCP
Temperature Range - Operating -40°C ~ 85°C
Efficiency 86%
Mounting Type Through Hole
Package / Case 6-DIP Module, 4 Leads
Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number RP15-2405
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 945-1259,30000985,RP152405SAW
Standard Package 8
Win Source Part Number 1088904-RP15-2405SAW
Ultra Librarian 3D Model Ultra Librarian RP15-2405SAW CAD Model

Description

The POWERLINE RP15-AW (15W) is a DC-DC converter module manufactured by Recom Power. This isolated module has a power output of 15W and features over-current protection, over-voltage protection, and short circuit protection.

  • Voltage Isolation: 1.6 kV
  • Efficiency: 86%
  • Standard Package: 8
  • Application: ITE (Commercial)
  • Mounting Type: Through-Hole
  • Package/Case: 6-DIP Module, 4 Leads
  • Dimension: 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
  • Alternative Parts (cross-reference): LM2576TV-5G, RP15-1205SF, LM2576T-005G, MC34166D2TR4G, and TSR 3-2415030000985
