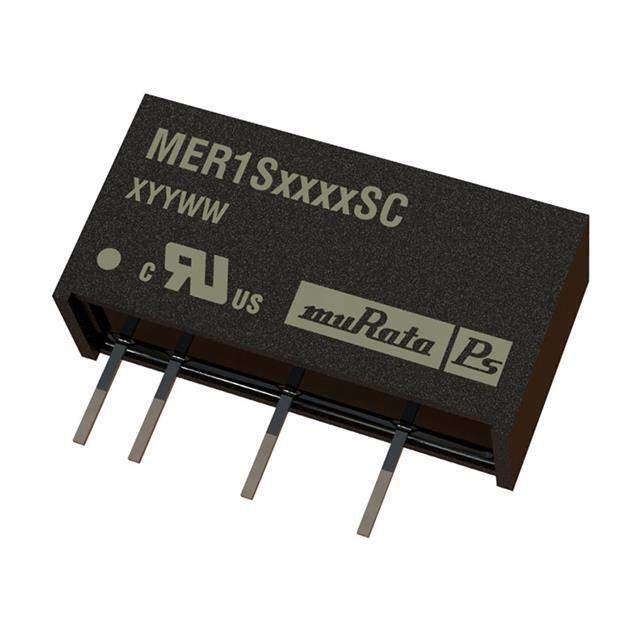

MER1S0515SC Real Image
Same model may have multiple batches, images only for reference.

MER1S0515SC

Part No MER1S0515SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 1W / Isolated Module DC DC Converter 1 Output 15V 67mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Current - Output (Max) 67mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87.5%
Mounting Through Hole
Case / Package 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Base Product Number MER1S05
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-2127-5
Standard Package 25
Win Source Part Number 1335243-MER1S0515SC
Ultra Librarian 3D Model Ultra Librarian MER1S0515SC CAD Model

Description

The MER1S0515SC is a 1W isolated module DC-DC converter manufactured by Murata Power Solutions Inc.

  • Size: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
  • Application: ITE (Commercial)
  • Voltage Isolation: 1 kV
  • Efficiency: 87.5%
  • Maximum Output Current: 67mA
  • Temperature Range: -40°C ~ 85°C
  • Package: 7-SIP
  • Leads: 4
  • Mounting Type: Through Hole
  • Standard Package: 25
  • ROHS3 Compliant: Yes
