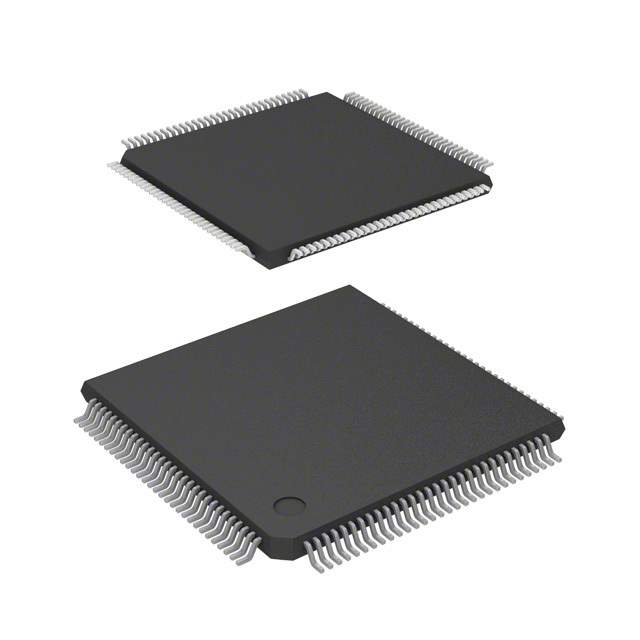

The HD64F2329EVTE25 is a microcontroller manufactured by Renesas Electronics America, belonging to the H8/300H series. It is designed for embedded control applications that require a balance of processing power, memory, and peripheral functions.

Applications

• Motor control
• Appliance control
• Industrial equipment
• Automotive applications
• Consumer electronics
• Security systems

Features

• H8/300H CPU core
• 25 MHz operating frequency
• On-chip Flash memory
• On-chip RAM
• Timers/Counters
• Serial Communication Interface (SCI)
• A/D Converter
• D/A Converter
• Input/Output ports

Benefits

• Suitable for a wide range of embedded control applications
• Flexible design through various peripherals
• Reduces external component count
• Cost-effective solution
• Facilitates precise control and timing
• Enable communication with other devices
• Allows measurement and control of analog signals

Additional Details

The HD64F2329EVTE25 microcontroller features a robust set of peripherals integrated with the H8/300H CPU core. The on-chip Flash memory allows for storing the program code, and the RAM provides space for data storage. The timers and counters are useful for generating precise timing signals and counting external events. The SCI enables serial communication with other devices. The A/D converter allows the microcontroller to measure analog signals, while the D/A converter allows it to generate analog control signals. The input/output ports provide a means to interface with external devices. When using the HD64F2329EVTE25, designers should consult the manufacturer's datasheet for detailed specifications, timing diagrams, and programming information. Considerations such as power supply requirements, clock source, and interrupt handling are critical for successful implementation. Furthermore, understanding the memory map, peripheral registers, and instruction set will enable effective utilization of the microcontroller's capabilities.
