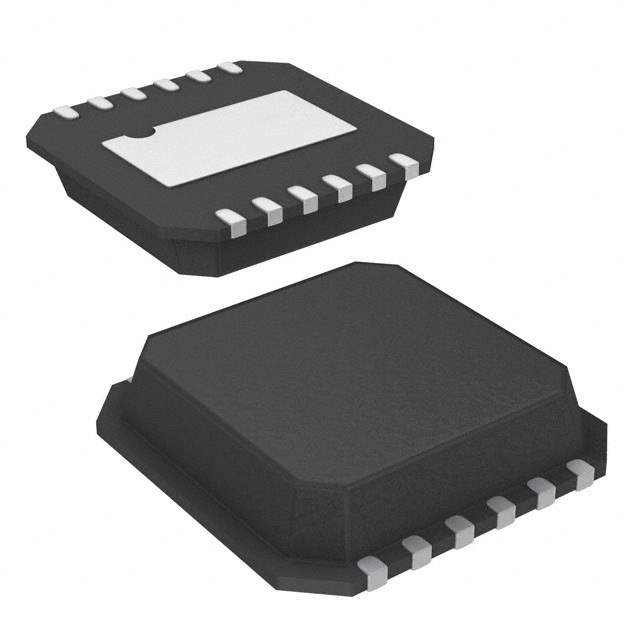

HIP2101IR4Z Real Image
Same model may have multiple batches, images only for reference.

HIP2101IR4Z

Part No HIP2101IR4Z
Manufacturer Renesas Electronics America
Catalog PMIC - Gate Drivers
Description 100V/2A Peak, Low Cost, High Frequency Half Bridge Driver | IC DRVR HALF BRIDGE 100V 12-DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Renesas Electronics America Inc.
Packaging Tube
Driven Configuration Half-Bridge
Channel Type Independent
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage (V) 9V ~ 14V
Logic Voltage - VIL, VIH 0.8V, 2.2V
Current - Peak Output (Source, Sink) 2A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 114V
Rise / Fall Time 10ns, 10ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style SMD
Manufacturer Package 12-VFDFN Exposed Pad
Supplier Device Package 12-DFN (4x4)
Family Part Number HIP2101
Manufacturer Pack Quantity 75
MSL Level 3 (168 Hours)
Win Source Part Number 1180726-HIP2101IR4Z
Manufacturer Homepage www.intersil.com/cda/home
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian HIP2101IR4Z CAD Model

Description

The Renesas Electronics America Inc. HIP2101IR4Z is an integrated circuit.

  • Configuration: half-bridge driven configuration with two drivers and independent channels.
  • Gate Type: N-Channel MOSFET
  • High Side Voltage: 114V
  • Win Source Part Number: 1180726-HIP2101IR4Z
  • Package: 12-DFN (4x4) supplier device package
  • Temperature Range: -55°C to 150°C
  • Supply and demand status: limited.
