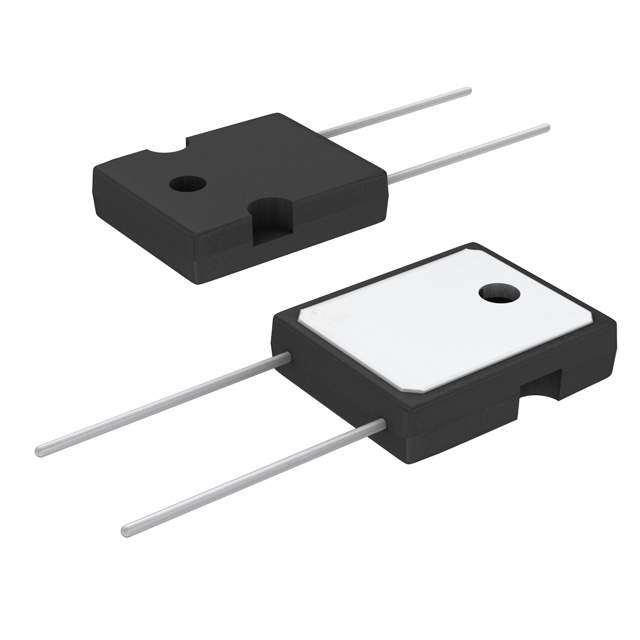

PF2472-200RF1 Real Image1 PF2472-200RF1 Real Image2
Same model may have multiple batches, images only for reference.
PF2472-200RF1 Real Image1 PF2472-200RF1 Real Image2
PF2472-200RF1 Real Image1 PF2472-200RF1 Real Image2
Same model may have multiple batches, images only for reference.

PF2472-200RF1

Part No PF2472-200RF1
Manufacturer Riedon
Catalog Through Hole Resistors
Description RES 200 OHM 1% 100W TO247  /  200 Ohms ±1% 100W Through Hole Resistor TO-247-2 Current Sense, Flame Proof, Pulse Withstanding, Safety Thin Film
Datasheet
PF2472-200RF1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Through Hole Resistors
Mfr Riedon
Series PF2470
Package Tube
Resistance 200 Ohms
Tolerance ±1%
Power (Watts) 100W
Composition Thin Film
Features Current Sense, Flame Proof, Pulse Withstanding, Safety
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case TO-247-2
Supplier Device Package TO-247
Dimension 0.630" L x 0.189" W (16.00mm x 4.80mm)
Height - Seated (Max) 0.787" (20.00mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8533.29.0000
Other Names PF2472-200,696-1111,PF2472-200-ND,696-1111-5,696-1111-ND,PF2472200RF1
Standard Package 25
Win Source Part Number 1030063-PF2472-200RF1
Ultra Librarian 3D Model Ultra Librarian PF2472-200RF1 CAD Model

Description

The Riedon 1030063-PF2472-200RF1 is a high-quality resistor that is designed to provide reliable performance.

  • Resistor Type: Current sense resistor
  • Features: Flame proof and pulse withstanding, safety features
  • Power Rating: 100W
  • Resistance: 200 Ohms
  • Resistor Type: Thin film resistor
  • Terminations: 2
  • Application: Through hole
