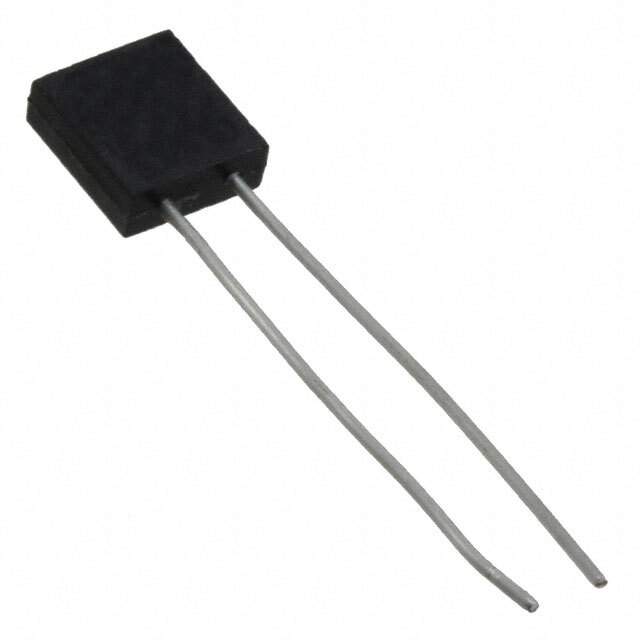

Same model may have multiple batches, images only for reference.

SM10-5KX

Name: SM10-5KX
Brand: Riedon
SKU: 1236266
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SM10-5KX
Manufacturer	Riedon
Catalog	Through Hole Resistors
Description	RES 5K OHM 0.01% 0.3W RADIAL / 5 kOhms ±0.01% 0.3W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Non-Inductive, Safety Wirewound
Datasheet	SM10-5KX Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Resistors>Through Hole Resistors
Mfr	Riedon
Series	100/SM/PC Precision
Package	Bulk
Resistance	5 kOhms
Tolerance	±0.01%
Power (Watts)	0.3W
Composition	Wirewound
Features	Flame Proof, Moisture Resistant, Non-Inductive, Safety
Temperature Coefficient	±10ppm/°C
Temperature Range - Operating	-55°C ~ 145°C
Package / Case	Radial
Dimension	0.299" L x 0.102" W (7.60mm x 2.60mm)
Height - Seated (Max)	0.344" (8.74mm)
Number of Terminations	2
Other Names	696-1588,SM10-5KX8
Standard Package	25
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8533.21.0080
Win Source Part Number	1236266-SM10-5KX
Ultra Librarian 3D Model	Ultra Librarian SM10-5KX CAD Model

Alternative Products

Description

The Riedon 1236266-SM10-5KX is a wirewound radial through hole resistor with a tolerance of ±0.01% and a temperature coefficient of ±10ppm/°C.

Tolerance: ±0.01%
Temperature Coefficient: ±10ppm/°C
Power Rating: 0.3W
Resistance: 5 kOhms
Features: Flame proof, moisture resistant, non-inductive, and safe to use
Height (Seated): 0.344" (8.74mm)
Dimensions: 0.299" L x 0.102" W (7.60mm x 2.60mm)
Operating Temperature Range: -55°C to 145°C
Standard Package: 25
