BA5969FP-E2 Rohm Semiconductor

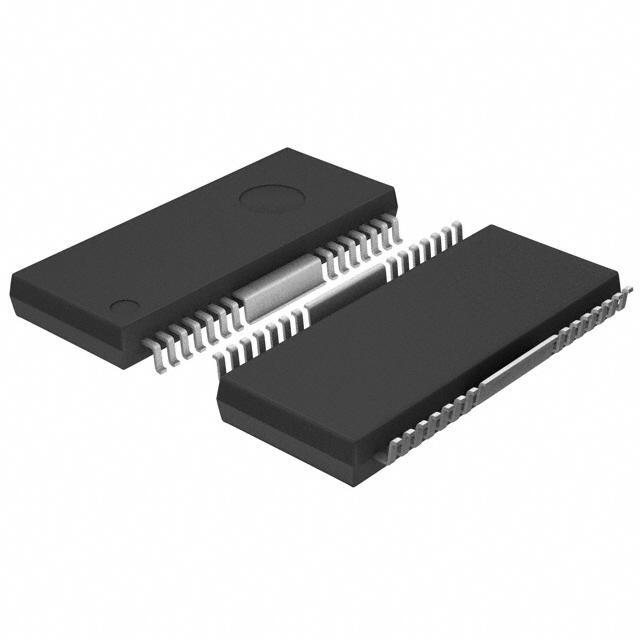

Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel package
Output Configuration Half Bridge (8)
Applications DC Motors, General Purpose
Interface Logic
Load Type Inductive
Technology Bipolar
Operating Supply Voltage 4.3 V ~ 9 V
Voltage - Load 6V
Operating Temperature Range -40°C ~ 85°C (TA)
Fault Protection Over Temperature
Mounting SMD
Package 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs
Manufacturer Package 28-HSOP
Win Source Part Number 769663-BA5969FP-E2
Popularity Medium
Supply and Demand Status Limited
Family Name BA5969FP
Introduction Date October 08, 2008
ECCN EAR99
Ultra Librarian 3D Model Ultra Librarian BA5969FP-E2 CAD Model

Description

The BA5969FP-E2 is an integrated circuit manufactured by Rohm Semiconductor.

  • Supply and Demand Status: Limited
  • Applications: DC motors
  • Voltage Load: 6V
  • Mounting Type: SMD
  • Package: 28-SOP (0.295", 7.50mm Width) + 2 Heat Tabs
  • Operating Supply Voltage: 4.3 V - 9 V
  • Operating Temperature: -40°C - 85°C (TA)
