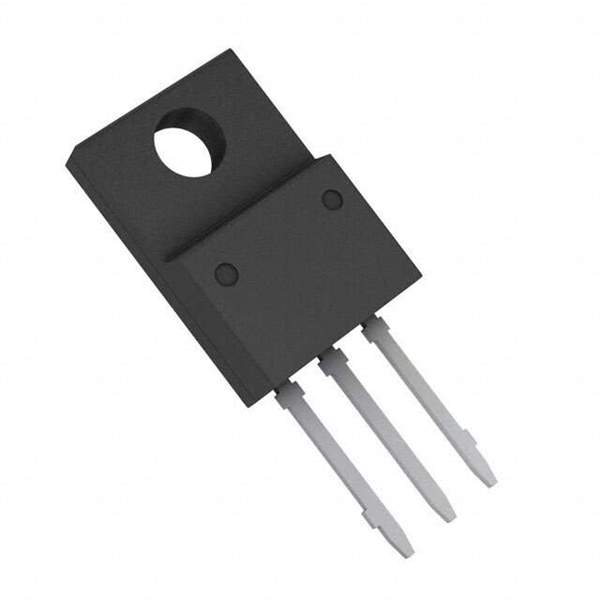

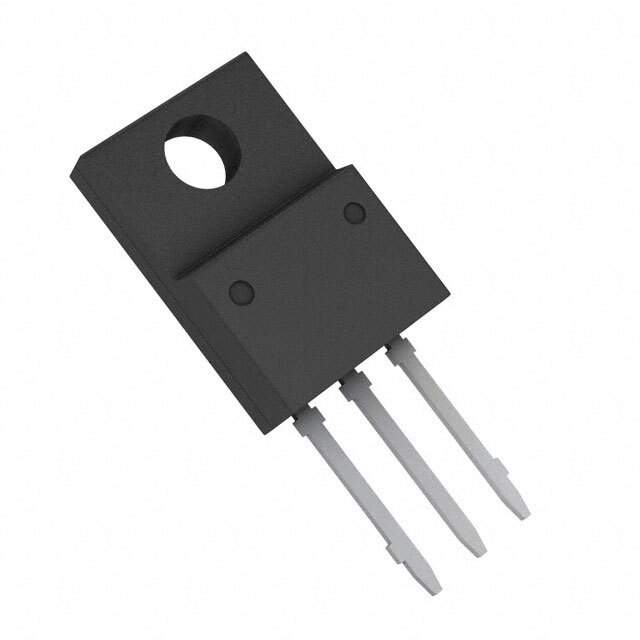

The BA7815CP-E2 is a three-terminal positive voltage regulator from Rohm Semiconductor. It is part of the 78xx series, known for providing a fixed output voltage with minimal external components. The '15' in the part number indicates a 15V output voltage. These regulators are commonly used in various electronic circuits for their simplicity and reliability.

Applications:

• Power Supply for Microcontrollers: Provides a stable 15V power supply for microcontrollers and supporting circuitry.
• Industrial Control Systems: Used in industrial automation and control equipment for regulated power.
• Testing and Measurement Equipment: Supplies a stable voltage in test instruments and measurement devices.
• Linear Power Supplies: Serves as the core voltage regulation component in linear power supply designs.
• General Purpose Regulation: Suitable for any application that requires a stable and regulated 15V positive voltage.

Features:

• Fixed 15V Output: Provides a stable and precise 15V output voltage.
• Internal Overload Protection: Protects the regulator from damage due to excessive current draw.
• Thermal Overload Protection: Shuts down the regulator if it overheats, preventing damage.
• Short-Circuit Protection: Protects the regulator and connected circuitry from short-circuit conditions.
• Minimal External Components: Requires only a few external capacitors for stable operation.

Benefits:

• Stable Voltage: Ensures a reliable and consistent 15V power supply for connected components.
• Enhanced Reliability: Internal protection features improve the lifespan and robustness of the regulator.
• Simple Implementation: Minimal external components simplify circuit design and reduce costs.
• Easy to Use: Straightforward to incorporate into various applications without complex design considerations.
• Cost-Effective: Offers a cost-efficient solution for voltage regulation needs.

The BA7815CP-E2 typically comes in a TO-220 package, making it easy to mount and heatsink. The datasheet from Rohm Semiconductor provides specific details on input voltage range, output voltage tolerance, and thermal characteristics. These linear regulators offer a robust and straightforward solution for achieving a stable 15V supply in a variety of electronic projects.
