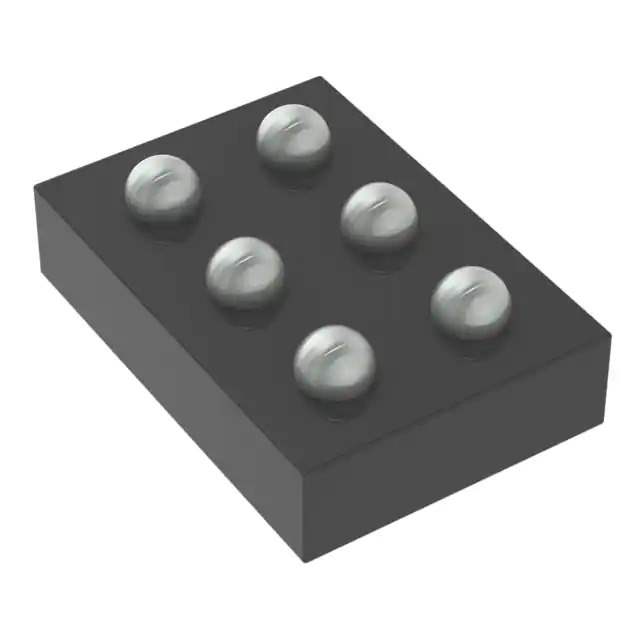

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Power Distribution Switches, Load Drivers
Mfr Rohm Semiconductor
Package Tape & Reel
Product Status Active
Switch Type General Purpose
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 2.7V ~ 5.5V
Voltage - Supply (Vcc/Vdd) Not Required
Current - Output (Max) 1A
Rds On (Typ) 100mOhm
Input Type Non-Inverting
Features Load Discharge, Slew Rate Controlled
Temperature Range - Operating -25°C ~ 85°C (TA)
Mounting Type Surface Mount
Supplier Device Package VCSP50L1
Package / Case 6-UFBGA, CSPBGA
Base Product Number BD2201
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 569868-BD2201GUL-E2
Ultra Librarian 3D Model Ultra Librarian BD2201GUL-E2 CAD Model

Description

The 569868-BD2201GUL-E2 is a power distribution switch and load driver integrated circuit.

  • Product: 569868-BD2201GUL-E2
  • Manufacturer: Rohm Semiconductor
  • Type: Power Distribution Switch and Load Driver IC
  • Features: Load Discharge and Slew Rate Controlled
  • Output Configuration: High-Side
  • Maximum Output Current: 1A
  • Voltage Range: 2.7V to 5.5V
  • Installation: Surface Mount
  • Package: 6-UFBGA, CSPBGA
  • Status: Active
