Products specifications

Categories Integrated Circuits (ICs)
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Output Type Transistor Driver
Function Step-Down
Output Configuration Positive
Topology Buck
Number of Outputs 1
Output Phases 1
Supply Voltage 10 V ~ 56 V
Frequency - Switching 50kHz ~ 500kHz
Synchronous Rectifier Yes
Clock Sync Yes
Control Features Current Limit, Enable, Frequency Control, Soft Start
Operating Temperature Range -40°C ~ 105°C (TA)
Package 20-VFQFN Exposed Pad
Manufacturer Package VQFN020V4040
Win Source Part Number 1152939-BD9610AMUV-E2
Manufacturer Homepage www.rohm.com
Family Name BD9610AMUV
Introduction Date February 23, 2012
ECCN EAR99
Estimated EOL Date 2019
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BD9610AMUV-E2 CAD Model

Description

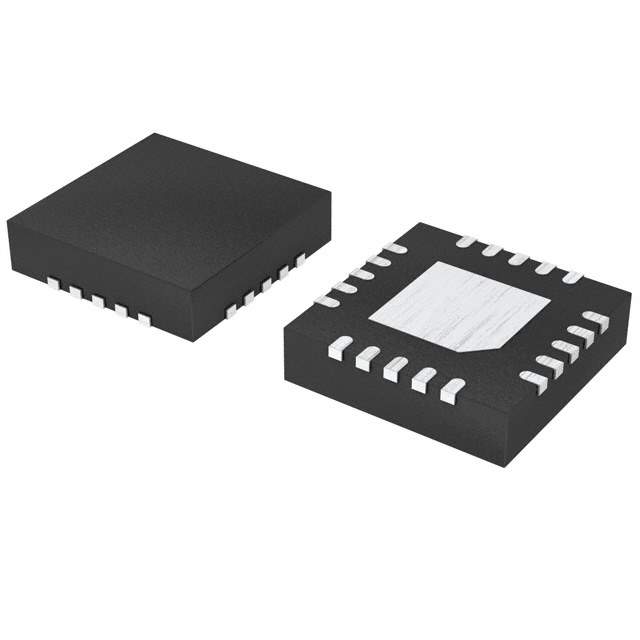

The BD9610AMUV-E2 is a step-down buck transistor driver integrated circuit from Rohm Semiconductor.

  • Package: 20-VFQFN Exposed Pad
  • Operating temperature range: -40°C to 105°C
  • Rectifier: synchronous
  • Output configuration: positive
  • Control features: current limit, enable, frequency control, and soft start
  • Supply voltage range: 10V to 56V
  • Frequency switching range: 50kHz to 500kHz
  • Clock sync: yes
  • Output phase: one
  • Ideal for: integrated circuits (ICs) applications
  • Supply and demand status: balanced.
