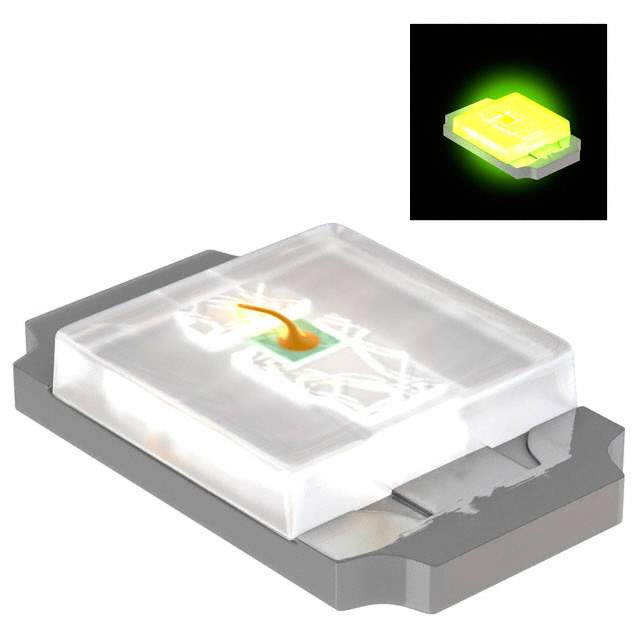

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel
Color Green
Configuration Standard
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 25mcd
Lens Style Square with Flat Top
Lens Size 0.60mm
Voltage - Forward (Vf) 2.2V
Current - Test 20mA
Mounting Style SMD
Wavelength - Dominant 572nm
Manufacturer Package 0402 (1006 Metric)
Supplier Device Package 1006 (0402)
Parts Dimension 1.00mm L x 0.60mm W
Height (Maximum) 0.25mm
Family Part Number SML-P12
Manufacturer Pack Quantity 1
MSL Level 4 (72 Hours)
Win Source Part Number 756700-SML-P12MTT86
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian SML-P12MTT86 CAD Model

Description

The Rohm Semiconductor 756700-SML-P12MTT86 is a 0402 (1006 metric) SMD LED that comes in a green color.

  • Package: 0402 (1006 metric)
  • Color: Green
  • Lens Shape: Square
  • Lens Top: Flat
  • Lens Size: 0.60mm
  • Millicandela Rating: 25mcd
  • Dominant Wavelength: 572nm
  • Maximum Forward Voltage: 2.2V
  • Maximum Current Test: 20mA
  • Manufacturer: Rohm Semiconductor
