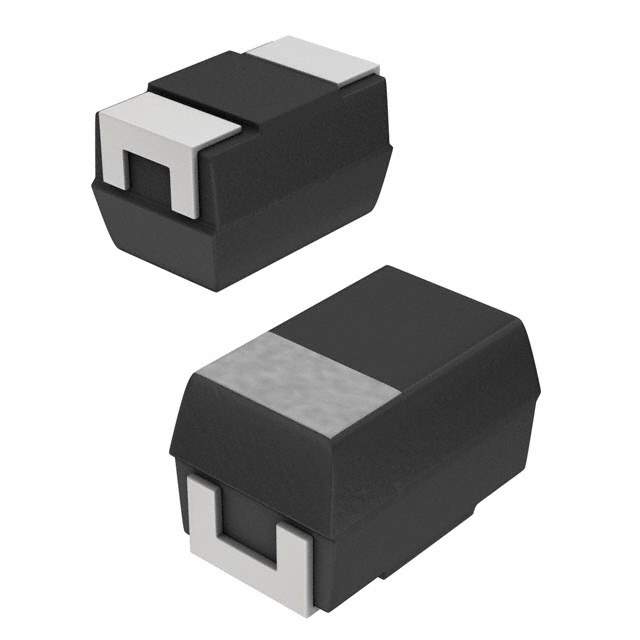

Same model may have multiple batches, images only for reference.

TCFGP0J156M8R

Name: TCFGP0J156M8R
Brand: Rohm Semiconductor
SKU: 360185
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	TCFGP0J156M8R
Manufacturer	Rohm Semiconductor
Catalog	Tantalum Capacitors
Description	CAP TANT 15UF 6.3V 20% 0805
Datasheet	TCFGP0J156M8R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Rohm Semiconductor
Packaging	Reel - TR
Status	Obsolete(EOL)
Capacitance	15μF
Tolerance	±20%
Voltage Rating	6.3V
Type	Molded
Temperature Range - Operating	-55°C to 125°C
Mounting	SMD (SMT)
Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max)	0.047" (1.20mm)
Manufacturer Size Code	P
Features	Fail Safe with Built-in Fuse
Win Source Part Number	112414-TCFGP0J156M8R
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian TCFGP0J156M8R CAD Model

Alternative Products

Description

The Rohm Semiconductor capacitor is a molded type with a capacitance of 15μF and voltage rating of 6.3V.

Capacitance: 15μF
Voltage Rating: 6.3V
Fail-safe: With built-in fuse
Tolerance: ±20%
Manufacturer Size Code: P
Status: Obsolete (EOL)
Temperature Range: -55°C to 125°C
Mounting: Surface Mounted
Package: Reel - TR
Height: 0.047" (1.20mm)
Dimension: 0.079" L x 0.049" W (2.00mm x 1.25mm)
Supply and Demand: Balanced
