Same model may have multiple batches, images only for reference.

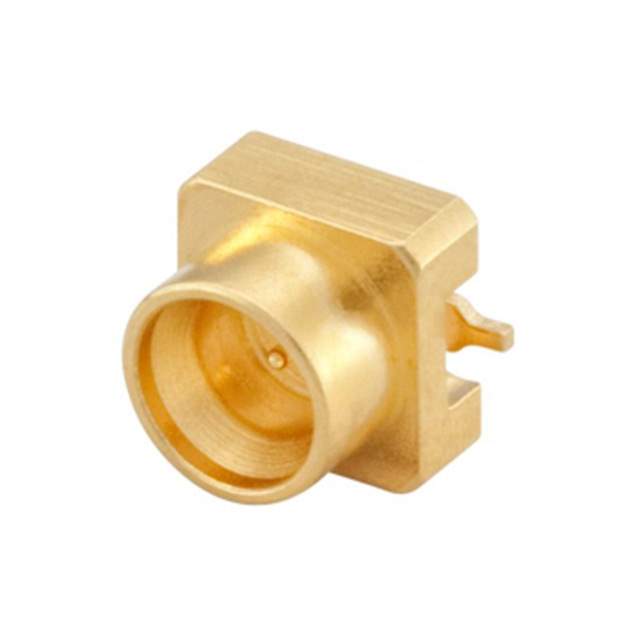

18S101-40ML5 Real Image
Same model may have multiple batches, images only for reference.

18S101-40ML5

Part No 18S101-40ML5
Manufacturer Rosenberger Hochfrequenztechnik GmbH & Co. KG
Catalog Coaxial Connectors (RF)
Description CONN SMP MINI PLUG STR 50OHM SMD / STRAIGHT PLUG PCB FULL DETENT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Rosenberger
Packaging Bulk
Connector Style SMP, Mini
Connector Type Plug, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting Style SMD
Fastening Type Snap-On
Frequency - Max 65GHz
Number of Ports 1
Features Full Detent
Housing Color Gold
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 155°C
Center Contact Material Brass
Voltage Rating 325V
Mating Cycles 100
Manufacturer Pack Quantity 100
MSL Level 1 (Unlimited)
Popularity Low
Supply and Demand Status Limited
Win Source Part Number 812294-18S101-40ML5
Ultra Librarian 3D Model Ultra Librarian 18S101-40ML5 CAD Model

Description

The Rosenberger 812294-18S101-40ML5 is a mini SMP plug connector with a male pin from Rosenberger.

  • Voltage Rating: 325V
  • Frequency: Up to 65GHz
  • Fastening Type: Snap-on, full detent
  • Housing Color: Gold
  • Body Material: Brass
  • Impedance: 50Ohm
  • Termination: Solder
  • Center Contact Material: Brass, gold plating
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Mounting: Surface mount
  • Temperature Range: -55°C to 155°C
  • Popularity: Low
  • Manufacturer Pack Quantity: 100
