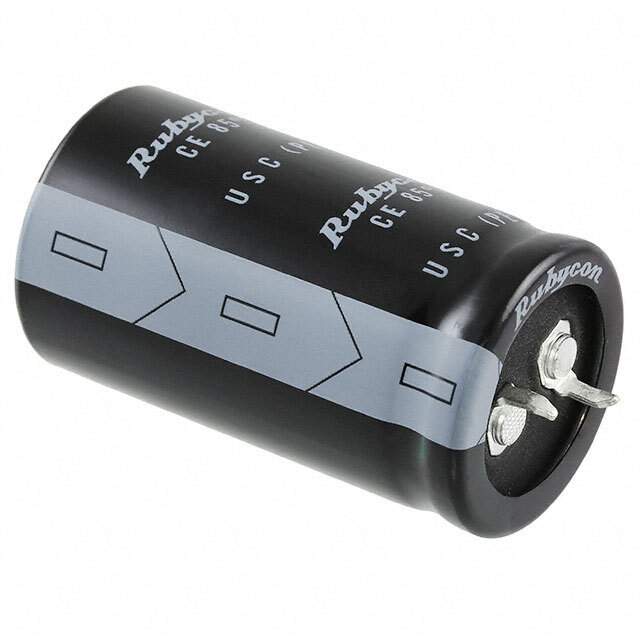

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Capacitance 2.2 mF
Mounting SMD (SMT)
Case / Package Radial
Diameter 25 mm
Height 35 mm
Height - Seated (Max) 37.0078 mm
Lead Pitch 10.0076 mm
Life (Hours) 3000 hours
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Through Hole
Packaging Bulk
Ripple Current 3.12 A
RoHS Compliant
Tolerance 20 %
Voltage Rating 100 V
Voltage Rating (DC) 100 V
Win Source Part Number 1016294-100USC2200MEFCSN25X35
Categories Aluminum Capacitors
Manufacturer Rubycon
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 100USC2200MEFCSN25X35 CAD Model

Description

The Rubycon 885247 capacitor is an aluminum electrolytic capacitor with a capacitance of 2.2 mF and a voltage rating of 100 V.

  • Capacitance: 2.2 mF
  • Voltage Rating: 100 V
  • Tolerance: 20%
  • Ripple Current: 3.12 A
  • Height: 35 mm
  • Diameter: 25 mm
  • Case/Package: Radial
  • Lead Pitch: 10.0076 mm
  • Application: General purpose
  • Maximum Operating Temperature: 85 °C
  • Supply and Demand Status: Shortage
  • Lifetime: 3000 hours
