Products specifications

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXJ
Package Bulk
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 10 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 105 mA @ 120 Hz
Ripple Current @ High Frequency 150 mA @ 100 kHz
Impedance 900 mOhms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357676-10YXJ100M5X11
Ultra Librarian 3D Model Ultra Librarian 10YXJ100M5X11 CAD Model

Description

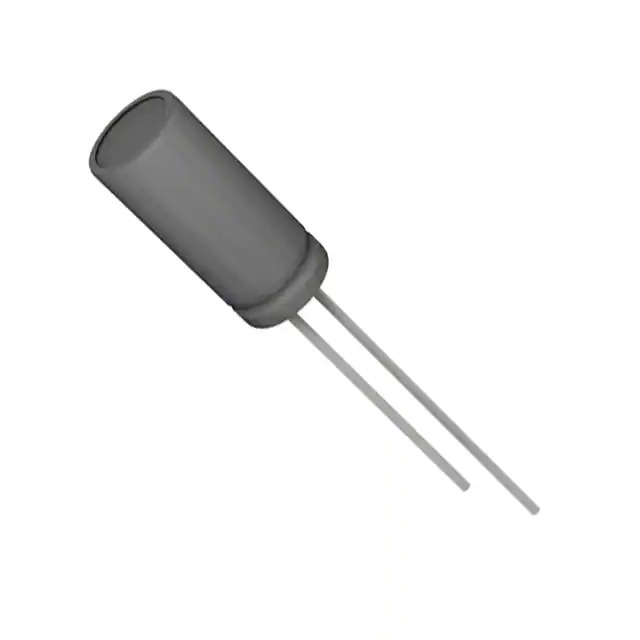

The Rubycon 1357676-10YXJ100M5X11 capacitor is a high-quality aluminum electrolytic capacitor designed for general-purpose applications. The 1357676-10YXJ100M5X11 capacitor is an active product in the YXJ series, manufactured by Rubycon, a reputable manufacturer in the industry.

  • Capacitance: 100 μF
  • Voltage Rating: 10 V
  • Temperature Range: -40°C to 105°C
  • ESR: Not Specified
  • Lifetime: 4000 hours @ 105°C
  • Ripple Current (Low Frequency): 105 mA @ 120 Hz
  • Ripple Current (High Frequency): 150 mA @ 100 kHz
  • Package: Radial, Can
  • Mounting Type: Through Hole
  • Lead Spacing: 0.079" (2.00mm)
  • Size: 0.197" Dia (5.00mm)
