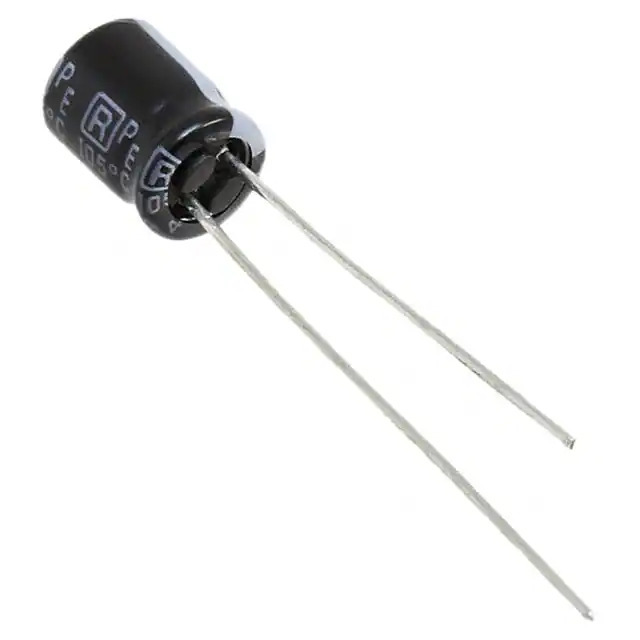

25MH710MEFC5X7 Rubycon
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series MH7
Package Bulk
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 33 mA @ 120 Hz
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357698-25MH710MEFC5X7
Ultra Librarian 3D Model Ultra Librarian 25MH710MEFC5X7 CAD Model

Description

The Rubycon MH7 series aluminum electrolytic capacitor provides a reliable solution for general-purpose applications.

  • Series: MH7
  • Capacitance: 10 μF
  • Voltage Rating: 25 V
  • Temperature Range: -40°C to 105°C
  • Package: Radial, can
  • Diameter: 5.00mm
  • Height: 8.00mm
  • Mounting: Through-hole
  • Lifetime: 1000 hours @ 105°C
  • Tolerance: ±20%
  • Ripple Current: 33 mA @ 120 Hz
  • REACH Unaffected: Yes
