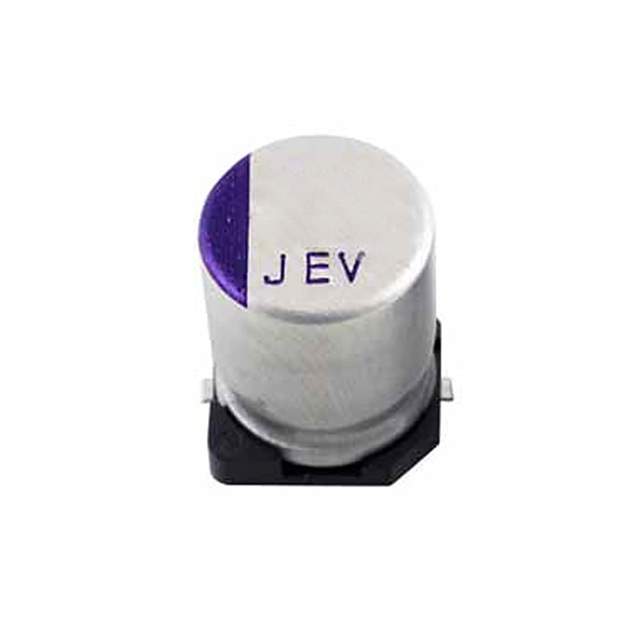

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Packaging Reel - TR
Status Active
Type Hybrid
Capacitance 100μF
Tolerance ±20%
Voltage Rating 25V
ESR 30 mOhm
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Applications Automotive
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1037267-25PEV100M6.3X8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 25PEV100M6.3X8 CAD Model

Description

The Rubycon 25PEV100M6.3X8 capacitor is a hybrid type capacitor with a capacitance of 100μF and a voltage rating of 25V. Bold the product name (e.g., BAV99S,135 → BAV99S,"135") and manufacturer (e.g., Nexperia USA Inc. → Nexperia USA Inc.).

  • Capacitor Type: Hybrid
  • Capacitance: 100μF
  • Voltage Rating: 25V
  • Application: Automotive
  • Lifetime: 10,000 hours @ 105°C
  • Tolerance: ±20%
  • ESR: 30 mOhm
  • Mounting: Surface Mountable
  • Surface Mount Land Size: 0.260" L x 0.260" W (6.60mm x 6.60mm)
  • Packaging: Reel - TR
  • Status: Active
  • Popularity: Medium
  • Supply and Demand Status: Balanced
