Products specifications

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 105 mA @ 120 Hz
Ripple Current @ High Frequency 150 mA @ 100 kHz
Impedance 900 mOhms
Lead Spacing 0.079" (2.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-1858,25YXF47MEFC5X11-ND
Standard Package 3,000
Win Source Part Number 1330528-25YXF47MEFC5X11
Ultra Librarian 3D Model Ultra Librarian 25YXF47MEFC5X11 CAD Model

Description

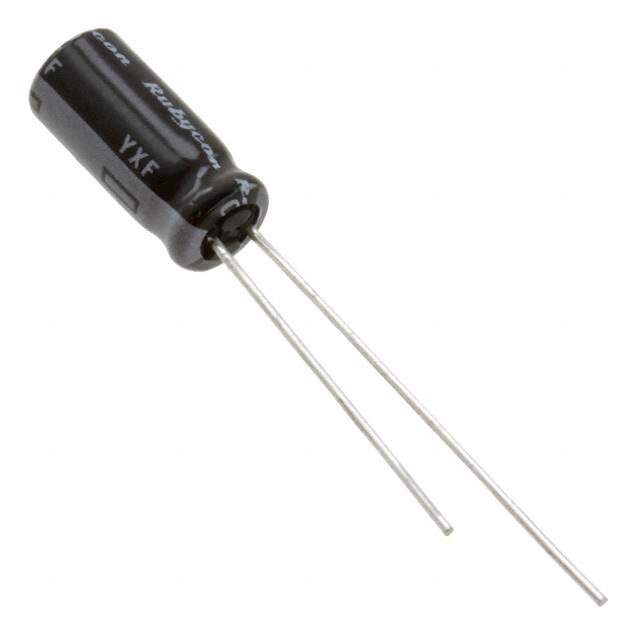

The Rubycon 1330528-25YXF47MEFC5X11 aluminum electrolytic capacitor is a general-purpose capacitor with a capacitance of 47 µF manufactured by Rubycon.

  • Capacitance: 47 µF
  • Voltage Rating: 25 V
  • Tolerance: ±20%
  • Lead Spacing: 0.079" (2.00mm)
  • Mounting Type: Through-hole
  • Package: Radial can package
  • Lifetime: 5000 hours @ 105°C
  • Impedance: 900 mOhms
  • ESR: Not specified
  • Ripple Current: 105 mA @ 120 Hz
  • Ripple Current: 150 mA @ 100 kHz
  • Dimensions: 0.197" diameter and 0.492" height
