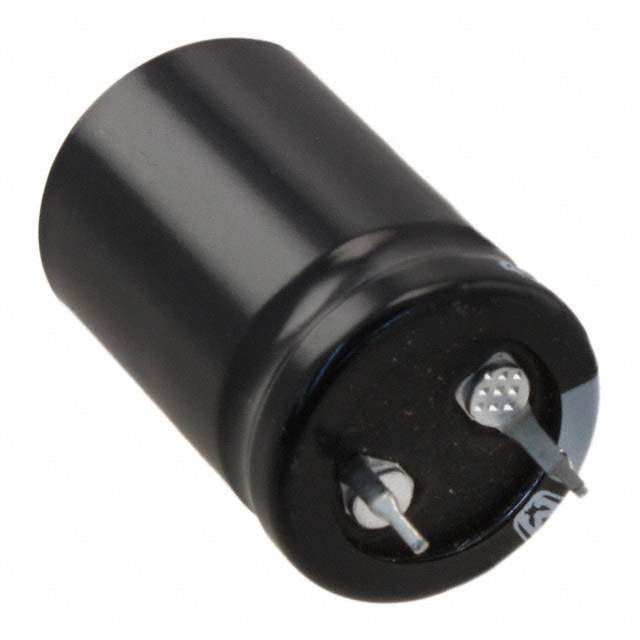

ECO-S1HP272AA Real Image
Same model may have multiple batches, images only for reference.

ECO-S1HP272AA

Part No ECO-S1HP272AA
Manufacturer Panasonic
Catalog Aluminum Capacitors
Description CAP ALUM 2700UF 20% 50V SNAP / Cap Aluminum Lytic 2700uF 50V 20% (20 X 30mm) Snap-In 10mm 0.123 Ohm 2520mA 2000h 85°C Bulk
Datasheet
ECO-S1HP272AA Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Series TS-UP
Packaging Bulk
Part Status Obsolete(EOL)
Capacitance 2700μF
Tolerance ±20%
Voltage Rating DC 50V
ESR (Equivalent Series Resistance) 123 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 2.52A @ 120Hz
Ripple Current - High Frequency 2.898A @ 100kHz
Lead Spacing 0.394" (10.00mm)
Dimension 0.787" Dia (20.00mm)
Height - Seated (Maximum) 1.181" (30.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 791126-ECO-S1HP272AA
Popularity Medium
Supply and Demand Status Balance
Family Name TS-UP
ECCN EAR99
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian ECO-S1HP272AA CAD Model

Description

The ECO-S1HP272AA is a radial, can - snap-in capacitor that is part of the TS-UP series from Panasonic Electronic Components.

  • Capacitance: 2700μF
  • Tolerance: ±20%
  • Lead Spacing: 0.394" (10.00mm)
  • ESR: 123 mOhm @ 120Hz
  • Ripple Current: 2.52A @ 120Hz, 2.898A @ 100kHz
  • Lifetime @ 85°C: 2000 Hrs
  • Voltage Rating DC: 50V
  • Polarization: Polarized
  • Height: 1.181" (30.00mm)
  • Series: TS-UP
  • Applications: General
  • EOL Status: Obsolete (EOL)
  • Alternative Parts: LP4-50V272MS2, LP4-50V272MS1, MALIEYH07LV427H42K, MALIEYH07LV427H02K
