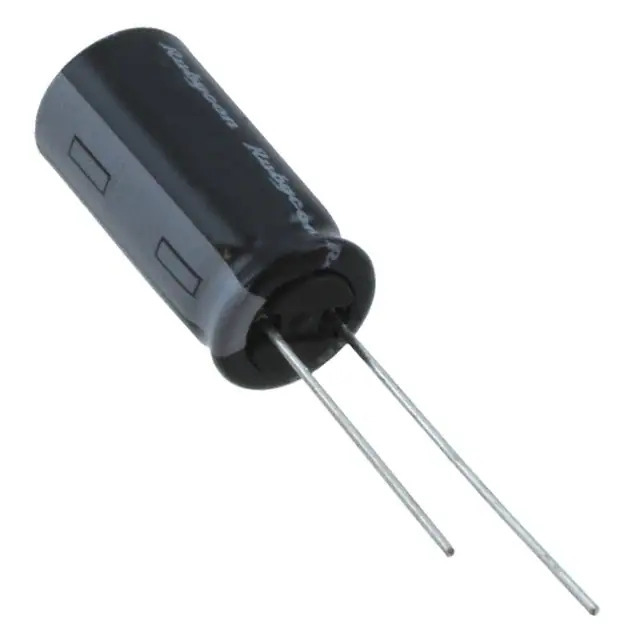

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series PX
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 64 mA @ 120 Hz
Ripple Current @ High Frequency 96 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358264-400PX10MEFCT810X16
Ultra Librarian 3D Model Ultra Librarian 400PX10MEFCT810X16 CAD Model

Description

The Rubycon PX series capacitors are aluminum electrolytic capacitors designed for general purpose applications.

  • Capacitance: 10 µF
  • Voltage Rating: 400 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 64 mA @ 120 Hz
  • Ripple Current (High Frequency): 96 mA @ 10 kHz
  • Lead Spacing: 0.197" (5.00mm)
  • Size: 0.394" Dia (10.00mm)
  • Height (Seated): 0.689" (17.50mm)
  • Lifetime: 2000 hours @ 105°C
  • Polarized: Yes
  • Impedance: 250 mOhms
  • Manufacturer: Rubycon
