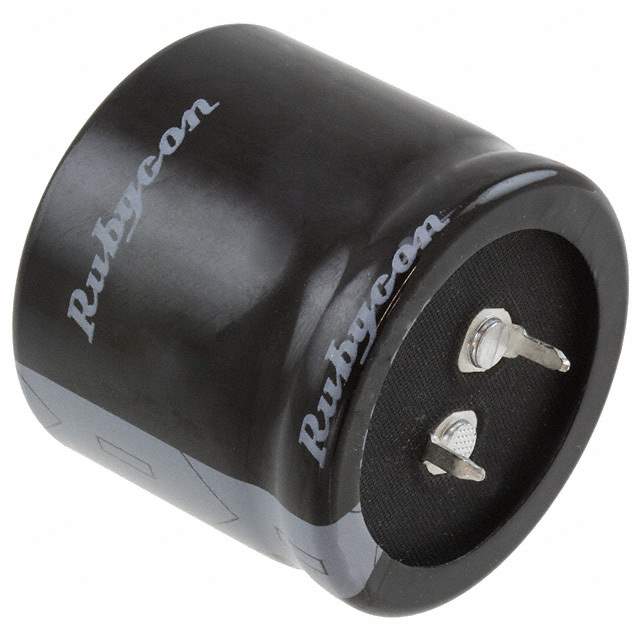

400VXH330MEFCSN35X25 Real Image1
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series VXH
Package Bulk
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.36 A @ 120 Hz
Ripple Current @ High Frequency 1.904 A @ 10 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Standard Package 100 pcs
Win Source Part Number 1380803-400VXH330MEFCSN35X25
Ultra Librarian 3D Model Ultra Librarian 400VXH330MEFCSN35X25 CAD Model

Description

The VXH series is a high-quality aluminum electrolytic capacitor designed for general-purpose applications.

  • Capacitance: 330 µF
  • Tolerance: ±20%
  • Voltage - Rated: 400 V
  • Application: General Purpose
  • Mounting Type: Radial, Can - Snap-In
  • Height - Seated (Max): 1.063" (27.00mm)
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Polarization: Polar
  • Manufacturer: Rubycon
  • Moisture Sensitivity Level (MSL): 1 (Unlimited)
