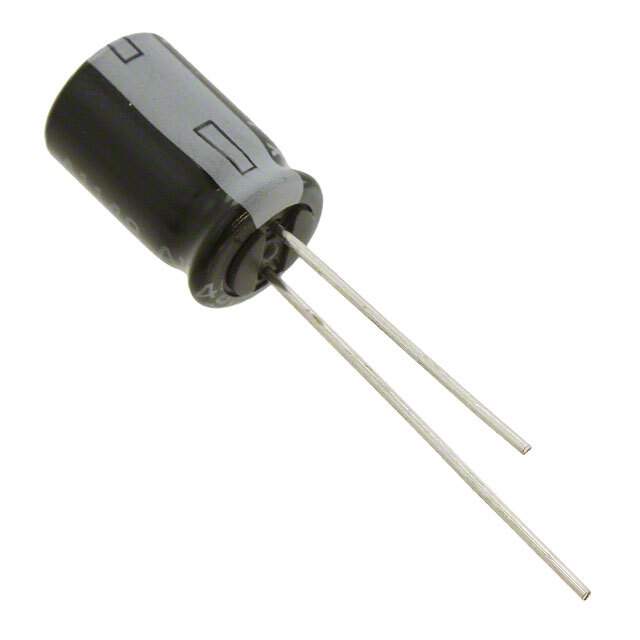

50PX100MEFC8X11.5 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 200 mA @ 120 Hz
Ripple Current @ High Frequency 240 mA @ 10 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 50PX100MEFC8X11.5-ND,1189-4018
Standard Package 2,000
Win Source Part Number 1331388-50PX100MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 50PX100MEFC8X11.5 CAD Model

Description

The Rubycon aluminum electrolytic capacitor is a general-purpose capacitor with a capacitance of 100 µF and a voltage rating of 50 V.

  • Manufacturer: Rubycon
  • Application: General-Purpose
  • Capacitance: 100 µF
  • Voltage Rating: 50 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): Not specified
  • Lifetime: 1000 hours @ 105°C
  • Polarization: Polar
  • Ripple Current @ Low Frequency: 200 mA @ 120 Hz
  • Ripple Current @ High Frequency: 240 mA @ 10 kHz
  • Package: Radial, can
  • Mounting: Through Hole
  • Diameter: 0.315" (8.00mm)
  • Height: 0.512" (13.00mm)
  • ROHS3 Compliant: Yes
