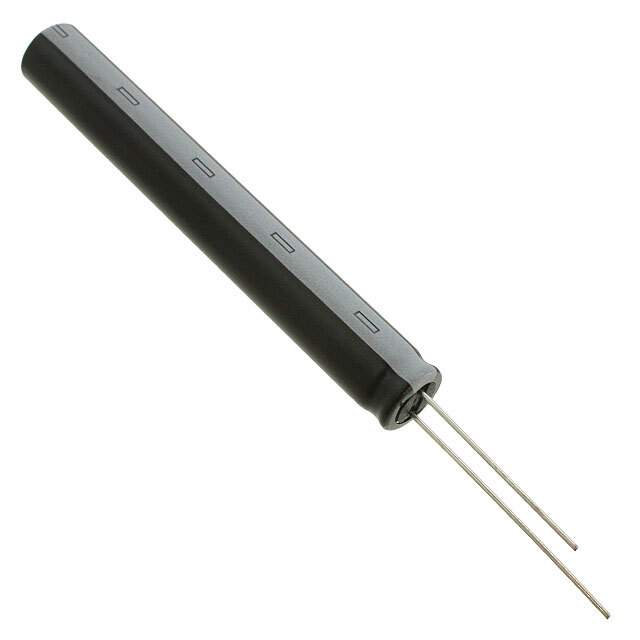

63TXW470MEFC8X60 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Capacitors
Manufacturer Rubycon
Series TXW
Packaging Bulk
Capacitance 470μF
Tolerance ±20%
Voltage Rating DC 63V
Lifetime @ Temp. 10000 Hrs @ 105°C
Operating Temperature Range -25°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 1.54A @ 120Hz
Ripple Current - High Frequency 2.8A @ 100kHz
Lead Spacing 0.138" (3.50mm)
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 2.461" (62.50mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 799414-63TXW470MEFC8X60
Popularity Medium
Supply and Demand Status Limited
Family Name TXW
Ultra Librarian 3D Model Ultra Librarian 63TXW470MEFC8X60 CAD Model

Description

The Rubycon TXW series capacitor is a general-purpose capacitor that offers a capacitance of 470μF and a voltage rating of 63V.

  • Capacitance: 470μF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Lead Spacing: 0.138" (3.50mm)
  • Package: Bulk
  • Operating Temperature: -25°C to 105°C
  • Lifetime @ 105°C: 10000 hours
  • Polarization: Polarized
  • Popularity: Medium
  • Supply and Demand: Limited
  • Diameter: 0.315" Dia (8.00mm)
