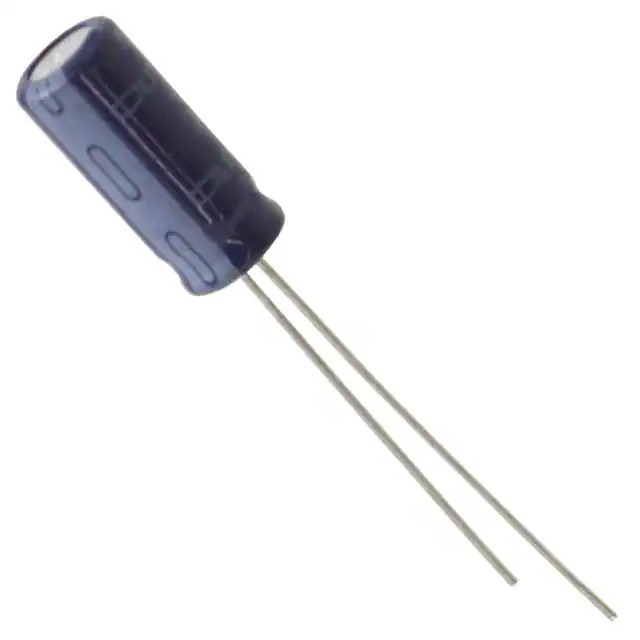

ELXZ630ELL331MJ30S United Chemi-Con
Same model may have multiple batches, images only for reference.

ELXZ630ELL331MJ30S

Part No ELXZ630ELL331MJ30S
Manufacturer United Chemi-Con
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 63V RADIAL / 330 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr United Chemi-Con
Series LXZ
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 650 mA @ 120 Hz
Ripple Current @ High Frequency 1.3 A @ 100 kHz
Impedance 90 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.240" (31.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357994-ELXZ630ELL331MJ30S
Ultra Librarian 3D Model Ultra Librarian ELXZ630ELL331MJ30S CAD Model

Description

The LXZ series aluminum electrolytic capacitor is a high-quality component designed for automotive applications.

  • Application: Automotive
  • Capacitance: 330 μF
  • Voltage - Rated: 63 V
  • Size / Dimension: 0.394" Dia x 1.240" H
  • Mounting Type: Through Hole
  • Manufacturer: United Chemi-Con
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Ripple Current @ Low Frequency: 650 mA
  • Ripple Current @ High Frequency: 1.3 A
  • Lead Spacing: 0.197"
  • Packaging: Bulk
  • Status: Active
  • REACH Status: Unaffected
  • AEC-Q200: Yes
