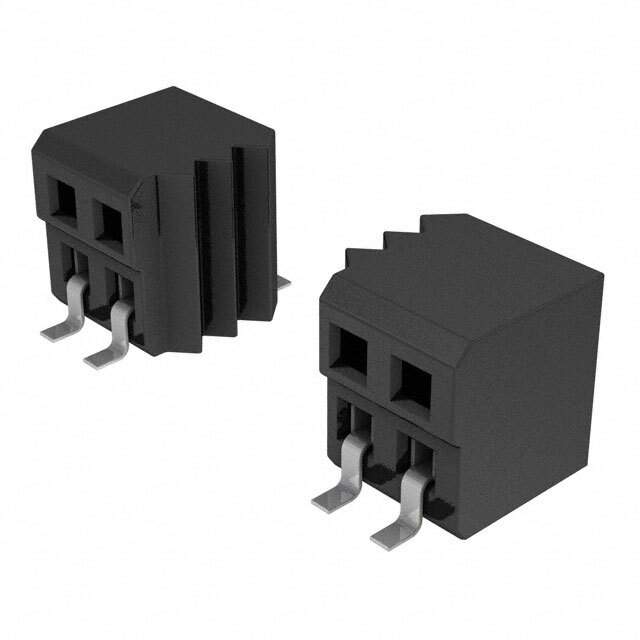

CLP-114-02-F-DH Real Image
Same model may have multiple batches, images only for reference.

CLP-114-02-F-DH

Part No CLP-114-02-F-DH
Manufacturer Samtec Inc.
Catalog Circular Connectors - Housings
Description CONN RCPT 28P 0.05 GOLD SMD R/A / 28 Position Receptacle Connector 0.050" (1.27mm) Surface Mount, Right Angle Gold
Datasheet
CLP-114-02-F-DH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series CLP
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 28
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 3.00µin (0.076µm)
Insulation Color Black
Insulation Height 0.135" (3.43mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Tin
Current Rating (Amps) 3.3A per Contact
Voltage Rating 240VAC, 330VDC
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Base Product Number CLP-114
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 32
Win Source Part Number 1179692-CLP-114-02-F-DH
Ultra Librarian 3D Model Ultra Librarian CLP-114-02-F-DH CAD Model

Description

The Samtec Inc. CLP-114-02-F-D-H is a rectangular connector used for headers, receptacles, and female sockets.

  • Connector Type: Headers, Receptacles, Female Sockets
  • Number of Positions: 28
  • Connector Style: Receptacle
  • Socket Gender: Female Sockets
  • Application: Board to Board
  • Pitch: 0.050" (1.27mm)
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Insulation Color: Black
  • Voltage Rating: 240VAC and 330VDC
  • Temperature Range: -55°C to 125°C
  • ECCN: EAR99
