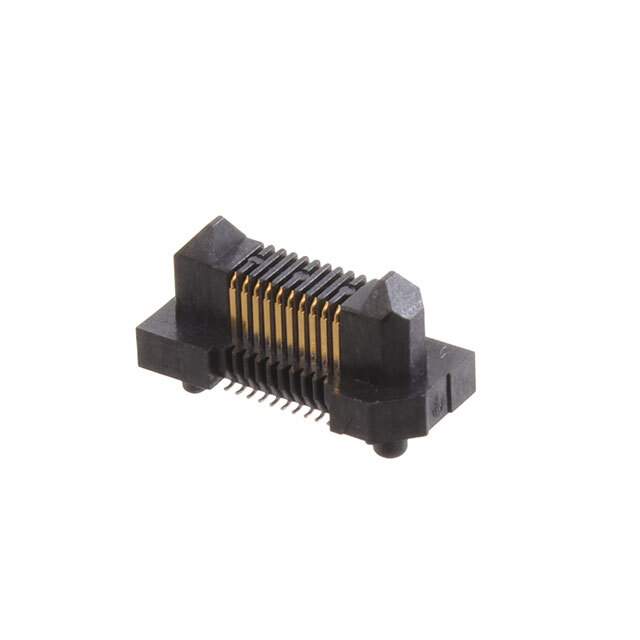

ERM5-010-02.0-L-DV-TR

Name: ERM5-010-02.0-L-DV-TR
Brand: Samtec Inc.
SKU: 1163711
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	ERM5-010-02.0-L-DV-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HDR 20POS SMD GOLD / 20 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet	ERM5-010-02.0-L-DV-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	Edge Rate™ ERM5
Package	Tape & Reel
Connector Type	Header, Outer Shroud Contacts
Number of Positions	20
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	SMD (SMT)
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	7mm, 9mm
Height Above Board	0.191" (4.85mm)
Base Product Number	ERM5-010
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	ERM5-010-02.0-L-DV-FR,SAM13651CT,SAM13651DKR,SAM13651TR,ERM5-010-02.0-L-DV-TR-ND
Standard Package	600
Win Source Part Number	1163711-ERM5-010-02.0-L-DV-TR
Ultra Librarian 3D Model	Ultra Librarian ERM5-010-02.0-L-DV-TR CAD Model

Alternative Products

Description

This Edge Rate™ ERM5 rectangular connector array is perfect for board-to-board interconnectivity.

Manufacturer: Samtec Inc.
Positions: 20
Pitch: 0.020" (0.50mm)
Height Above Board: 0.191" (4.85mm)
Connector Type: Header with Outer Shroud Contacts
Rows: Two
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Package: Tape and Reel
Standard Package: 600
Mounting Style: Surface Mount
Cross-Reference: ERM5-010-02.0-L-DV-TR and ERM5010020LDVTR
ECCN: EAR99
REACH: Unaffected
