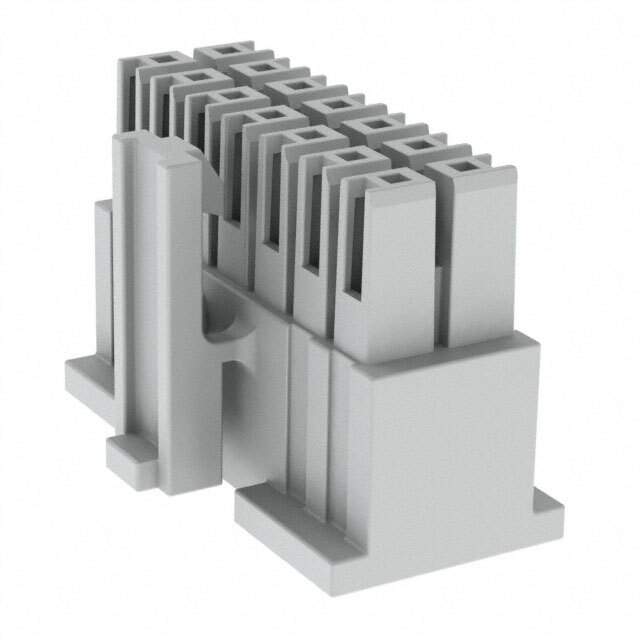

IPD1-07-D Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr Samtec Inc.
Series Mini Mate® IPD1
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 14
Pitch 0.100" (2.54mm)
Number of Rows 2
Row Spacing 0.100" (2.54mm)
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Latch Lock
Color White
Note Contacts Not Included
Base Product Number IPD1-07
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.6000
Other Names IPD1-07-D-ND,Q5202036,SAM8820
Standard Package 1
Win Source Part Number 1142096-IPD1-07-D
Ultra Librarian 3D Model Ultra Librarian IPD1-07-D CAD Model

Description

The Samtec Inc. electronic component is a rectangular connector housing that is part of the Mini Mate® IPD1 series.

  • Series: Mini Mate® IPD1
  • Positions: 14
  • Pitch: 0.100" (2.54mm)
  • Color: White
  • Type: Receptacle
  • Contact Gender: Female sockets
  • Fastening Type: Latch lock
  • Mounting: Free hanging (in-line)
  • Row Spacing: 0.100" (2.54mm)
