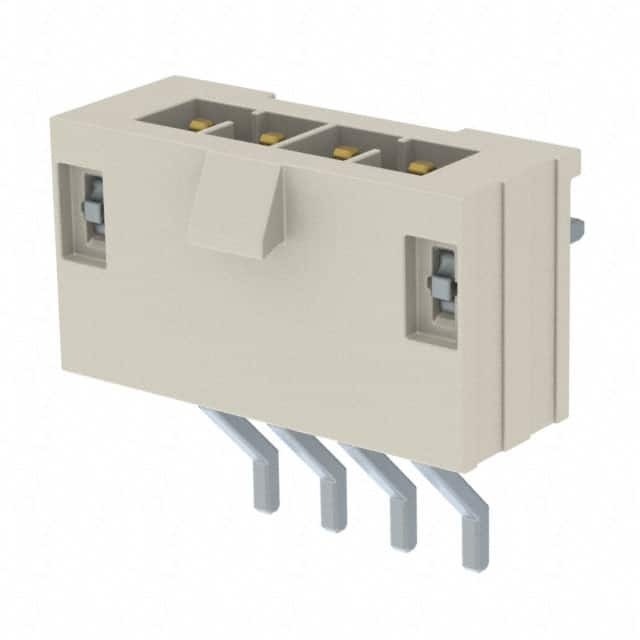

IPL1-104-02-L-SH-K-TR
Same model may have multiple batches, images only for reference.

IPL1-104-02-L-SH-K-TR

Part No IPL1-104-02-L-SH-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 2.54MM / Connector Header Surface Mount, Right Angle 4 position 0.100" (2.54mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Mini Mate® IPL1
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Contact Length - Mating 0.215" (5.46mm)
Insulation Height 0.220" (5.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Board Guide
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Voltage Rating 675VAC, 954VDC
Base Product Number IPL1-104
Standard Package 250 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 921311-IPL1-104-02-L-SH-K-TR
Ultra Librarian 3D Model Ultra Librarian IPL1-104-02-L-SH-K-TR CAD Model

Description

The Mini Mate® IPL1 series is a versatile line of rectangular connectors designed for various applications.

  • Product: IPL1-104-02-L-SH-K-TR
  • Positions: 4-position male pin header
  • Feature: board guide
  • Contact Material: phosphor bronze
  • Contact Finish: gold
  • Voltage Rating: 675VAC and 954VDC
  • Pitch: 0.100" (2.54mm)
  • Mounting: surface mount
  • Fastening Type: locking ramp
  • Packaging: tape & reel
  • Insulation Material: UL94 V-0 rated liquid crystal polymer (LCP)
  • Operating Temperature: -55°C to 125°C
  • Application: board to cable/wire
