Same model may have multiple batches, images only for reference.

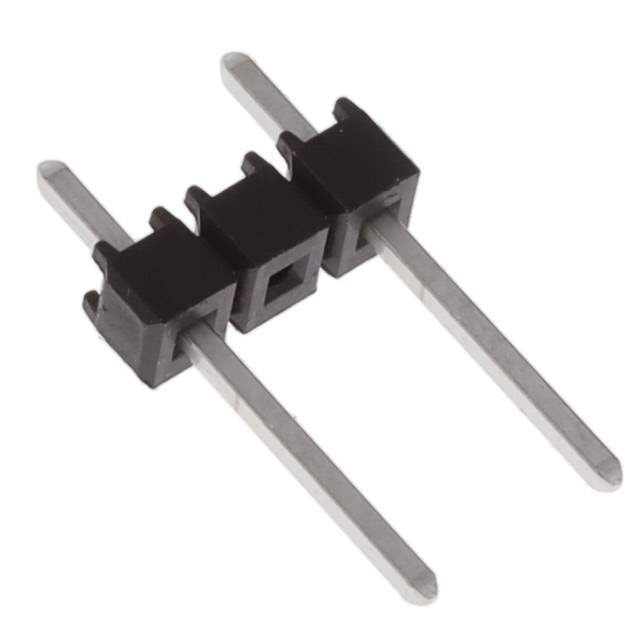

MTSW-202-08-T-S-320 Real Image
Same model may have multiple batches, images only for reference.

MTSW-202-08-T-S-320

Part No MTSW-202-08-T-S-320
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 5.08MM / Connector Header Through Hole 2 position 0.200" (5.08mm)
Datasheet
MTSW-202-08-T-S-320 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, MTSW
Package Bulk
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.200" (5.08mm)
Number of Positions 2
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.320" (8.13mm)
Contact Length - Post 0.110" (2.79mm)
Overall Contact Length 0.530" (13.46mm)
Insulation Height 0.100" (2.54mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyester, Glass Filled
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3A
Base Product Number MTSW-202
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1
Win Source Part Number 1128608-MTSW-202-08-T-S-320
Ultra Librarian 3D Model Ultra Librarian MTSW-202-08-T-S-320 CAD Model

Description

The Samtec Inc. MTSW-202-08-T-S-320 is a 2-position header connector with male pins.

  • Series: Flex Stack, MTSW
  • Connector Type: cuttable
  • Contact Type: male pin
  • Positions Loaded: all
  • Pitch: 0.200" (5.08mm)
  • Contact Finish: tin
  • Mounting: through hole
  • Fastening Type: push-pull
  • RoHS: compliant
  • Insulation Material: polyester, glass filled
  • Temperature Range: -55°C to 105°C
  • Current Rating: 3A
  • REACH: unaffected
  • Positions: 2
