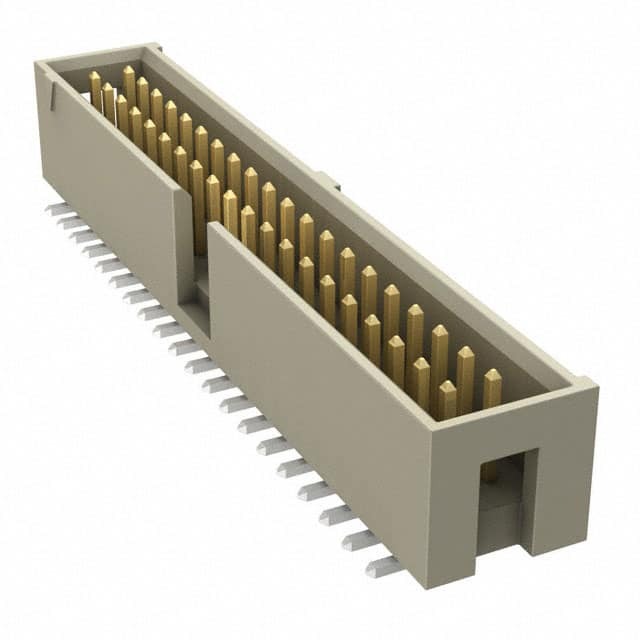

HTST-120-01-L-DV-P-TR Samtec Inc.
Same model may have multiple batches, images only for reference.

HTST-120-01-L-DV-P-TR

Part No HTST-120-01-L-DV-P-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
HTST-120-01-L-DV-P-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series Flex Stack, HTST
Package Tape & Reel (TR),Cut Tape (CT)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 40
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.250" (6.35mm)
Insulation Height 0.350" (8.89mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Features Keying Slot, Pick and Place
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 3.4A per Contact
Base Product Number HTST-120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1315004-HTST-120-01-L-DV-P-TR
Ultra Librarian 3D Model Ultra Librarian HTST-120-01-L-DV-P-TR CAD Model

Description

The Samtec Inc. connector is a board to cable/wire style connector used for rectangular connectors - headers, male pins. It has a 40 position and is a part of the Flex Stack, HTST series.

  • Connector Type: Rectangular Connectors - Headers, Male Pins
  • Style: Board to Cable/Wire
  • Number of Positions: 40
  • Series: Flex Stack, HTST
  • Features: Keying Slot, Pick and Place
  • Connector Type: Header
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Number of Rows: 2
  • Termination: Solder
  • Package: Tape & Reel (TR), Cut Tape (CT)
  • Contact Material: Phosphor Bronze
  • Voltage Rating: -
  • Mounting Type: SMD (SMT)
  • Temperature Range: -55°C to 125°C
  • Shrouding: Shrouded-4 Wall
