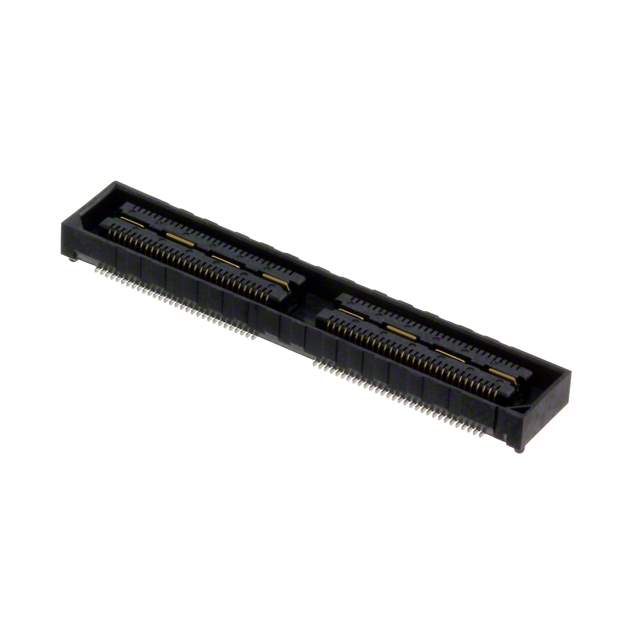

QSH-060-01-L-D-A-K

Name: QSH-060-01-L-D-A-K
Brand: Samtec Inc.
SKU: 1332039
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	QSH-060-01-L-D-A-K
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 120POS SMD GOLD / 120 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet	QSH-060-01-L-D-A-K Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Arrays, Edge Type, Mezzanine (Board to Board)
Manufacturer	Samtec Inc.
Packaging	Tray
Connector Type	Receptacle, Center Strip Contacts
Number of Positions	120
Pitch	0.020" (0.50mm)
Number of Rows	2
Mounting	Surface Mount
Features	Board Guide, Ground Bus (Plane), Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Height Above Board	0.128" (3.25mm)
Base Product Number	QSH-060
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	SAM10652,QSH-060-01-L-D-A-K-ND
Standard Package	64
Win Source Part Number	1332039-QSH-060-01-L-D-A-K
Ultra Librarian 3D Model	Ultra Librarian QSH-060-01-L-D-A-K CAD Model

Alternative Products

Description

The Samtec Inc. QSH-060-01-L-D-A-K is a 120 position receptacle center strip connector with a pitch of 0.020 inches (0.50mm).

Positions: 120
Pitch: 0.020 inches (0.50mm)
Features: Board Guide, Ground Bus (Plane), Pick and Place
Mounting Type: Surface Mount
Mated Stacking Heights: 5mm, 8mm, 11mm, 14mm, 16mm, 19mm, 25mm
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
RoHS3 Compliant: Yes
REACH: Unaffected
ECCN: EAR99
MSL Level: 1 (Unlimited)
HTSUS Code: 8536.69.4040
Other Part Numbers: SAM10652, QSH-060-01-L-D-A-K-ND
