Same model may have multiple batches, images only for reference.

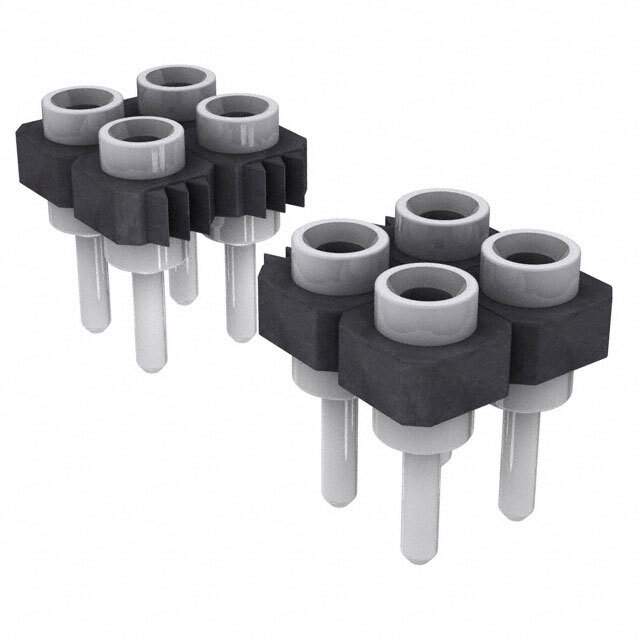

SDL-125-TT-10 Real Image
Same model may have multiple batches, images only for reference.

SDL-125-TT-10

Part No SDL-125-TT-10
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SDL-125-TT-10 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series SDL
Package Tube
Connector Type Receptacle
Contact Type Female Socket
Style Board to Board
Number of Positions 50
Number of Positions Loaded All
Pitch - Mating 0.100" (2.54mm)
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Mounting Type Through Hole
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Tin
Insulation Color Black
Insulation Height 0.122" (3.10mm)
Contact Length - Post 0.108" (2.75mm)
Temperature Range - Operating -55°C ~ 105°C
Contact Finish - Post Tin
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Circular
Contact Material Beryllium Copper
Base Product Number SDL-125
Other Names SAM1139-25
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1292951-SDL-125-TT-10
Ultra Librarian 3D Model Ultra Librarian SDL-125-TT-10 CAD Model

Description

The Samtec SDL-125-TT-10 is a high-quality connector that is designed to provide reliable and consistent performance.

  • Style: Board-to-board
  • Manufacturer: Samtec Inc.
