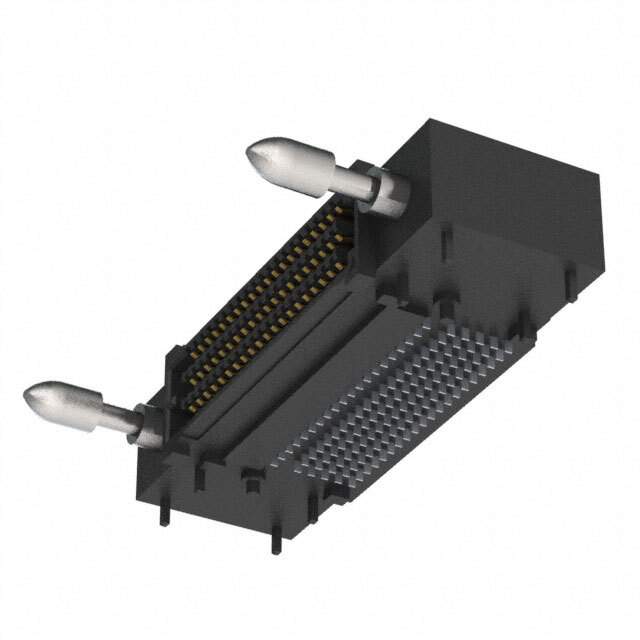

SEAF-20-01-L-06-2-RA-LP-TR

Name: SEAF-20-01-L-06-2-RA-LP-TR
Brand: Samtec Inc.
SKU: 1293866
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-20-01-L-06-2-RA-LP-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-01-L-06-2-RA-LP-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel
Connector Type	High Density Array, Female
Number of Positions	120
Pitch	0.050" (1.27mm)
Number of Rows	6
Mounting Type	Surface Mount, Right Angle
Features	Board Guide, Latches
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Height Above Board	0.411" (10.45mm)
Base Product Number	SEAF-20
Other Names	SAM14300TR,SEAF-20-01-L-06-2-RA-LP-TR,SAM14300DKR,SAM14300CT
Standard Package	50
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293866-SEAF-20-01-L-06-2-RA-LP-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-01-L-06-2-RA-LP-TR CAD Model

Alternative Products

Description

The SEAF-20-01-L-06-2-RA-LP-TR is a high-density array connector designed for mezzanine applications.

Connector Type: Female
Number of Contacts: 120
Pitch: 0.050" (1.27mm)
Height Above Board: 0.411" (10.45mm)
Mounting Type: Surface mounted at a right angle
Features: Latches and board guides
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Packaging: Tape and reel packaged
Standard Package: 50
REACH: Unaffected
