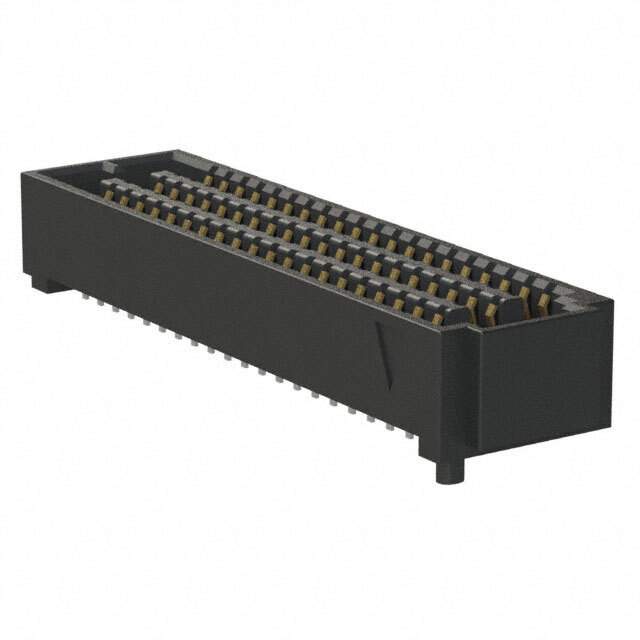

Same model may have multiple batches, images only for reference.

SEAF-20-06.5-L-06-1-A-K-TR

Name: SEAF-20-06.5-L-06-1-A-K-TR
Brand: Samtec Inc.
SKU: 1293754
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SEAF-20-06.5-L-06-1-A-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-20-06.5-L-06-1-A-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	120
Pitch	0.050" (1.27mm)
Number of Rows	6
Mounting	SMD (SMT)
Features	Board Guide, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	10.0µin (0.25µm)
Mated Stacking Heights	8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm
Height Above Board	0.258" (6.55mm)
Base Product Number	SEAF-20
Standard Package	200
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293754-SEAF-20-06.5-L-06-1-A-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-20-06.5-L-06-1-A-K-TR CAD Model

Alternative Products

Description

The Samtec Inc. SEARAY™ SEAF series of connectors is a high-density array, female type connector with 120 positions and a pitch of 0.050" (1.27mm).

Features: Board guide and pick and place feature
Contact Finish: Gold
Contact Finish Thickness: 10.0µin (0.25µm)
Packaging: Tape and reel
Mated Stacking Heights: 8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, and 19.5mm
Height Above Board: 0.258" (6.55mm)
Mounting: SMD (SMT)
MSL Level: 1 (Unlimited)
HTSUS: 8536.69.4040
RoHS: Non-compliant
