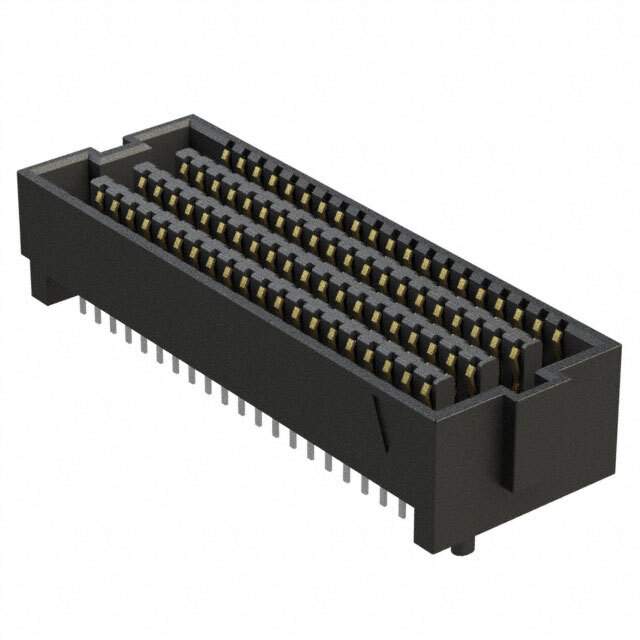

SEAF-20-06.5-S-08-2-A Real Image
Same model may have multiple batches, images only for reference.

SEAF-20-06.5-S-08-2-A

Part No SEAF-20-06.5-S-08-2-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-20-06.5-S-08-2-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tray
Product Status Obsolete
Connector Type High Density Array, Female
Number of Positions 160
Pitch 0.050" (1.27mm)
Number of Rows 8
Mounting SMD (SMT)
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Mated Stacking Heights 8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, 19.5mm
Height Above Board 0.258" (6.55mm)
Base Product Number SEAF-20
Other Names SAM8002
Standard Package 1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293544-SEAF-20-06.5-S-08-2-A
Ultra Librarian 3D Model Ultra Librarian SEAF-20-06.5-S-08-2-A CAD Model

Description

The SEAF-20 series connector is a rectangular connector used in edge type, mezzanine (board to board) applications.

  • Positions: 160
  • Pitch: 0.050" (1.27mm)
  • Features: Board guide
  • Connector Type: High-density array, female
  • Rows: 8
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Packaging: Tray
  • Mounting Type: Surface mount
  • Height Above Board: 0.258" (6.55mm)
  • Mated Stacking Height: 8.5mm, 9.5mm, 10mm, 13mm, 13.5mm, 15.5mm, 17.5mm, and 19.5mm
  • HTSUS: 69.4040
  • Status: Obsolete
  • Base Product Number: SEAF-20
