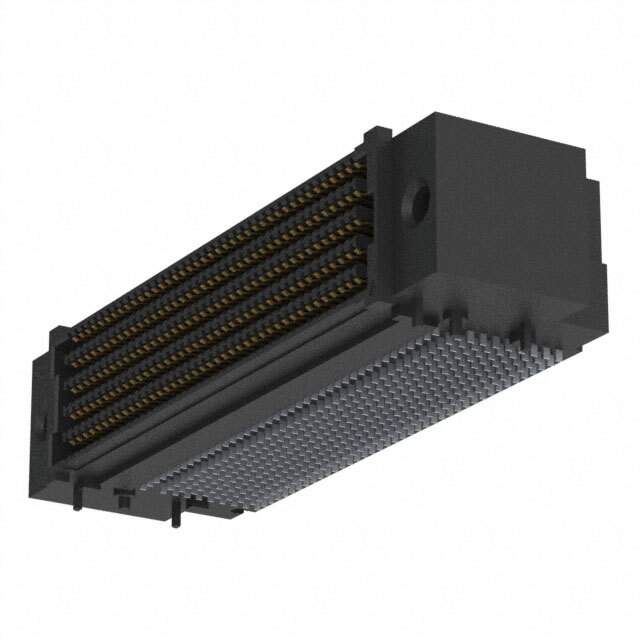

SEAF-40-01-L-10-1-RA-GP-TR Real Image
Same model may have multiple batches, images only for reference.

SEAF-40-01-L-10-1-RA-GP-TR

Part No SEAF-40-01-L-10-1-RA-GP-TR
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SEAF-40-01-L-10-1-RA-GP-TR Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Samtec Inc.
Series SEARAY™ SEAF
Package Tape & Reel (TR)
Connector Type High Density Array, Female
Number of Positions 400
Pitch 0.050" (1.27mm)
Number of Rows 10
Mounting Type Surface Mount, Right Angle
Features Board Guide, Mating Flange
Contact Finish Gold
Contact Finish Thickness 10.0µin (0.25µm)
Height Above Board 0.611" (15.53mm)
Base Product Number SEAF-40
Standard Package 75
RoHS Status RoHS non-compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293582-SEAF-40-01-L-10-1-RA-GP-TR
Ultra Librarian 3D Model Ultra Librarian SEAF-40-01-L-10-1-RA-GP-TR CAD Model

Description

The Samtec Inc. 1293582-SEAF-40-01-L-10-1-RA-GP-TR is a 400-position female connector that is designed for use in high-density array, edge type, mezzanine (board-to-board) applications.

  • Type: Rectangular connector
  • Rows: 10
  • Positions Loaded: All
  • Pitch: 0.050 inches (1.27mm)
  • Contact Finish: Gold
  • Contact Finish-Thickness: 10.0µin (0.25µm)
  • Height Above Board: 0.611 inches (15.53mm)
  • Mounting: Surface mount, right angle
  • Package: Tape & reel (TR)
  • Insulation Material: Liquid crystal polymer (LCP)
  • Temperature Range: -55°C to 125°C
