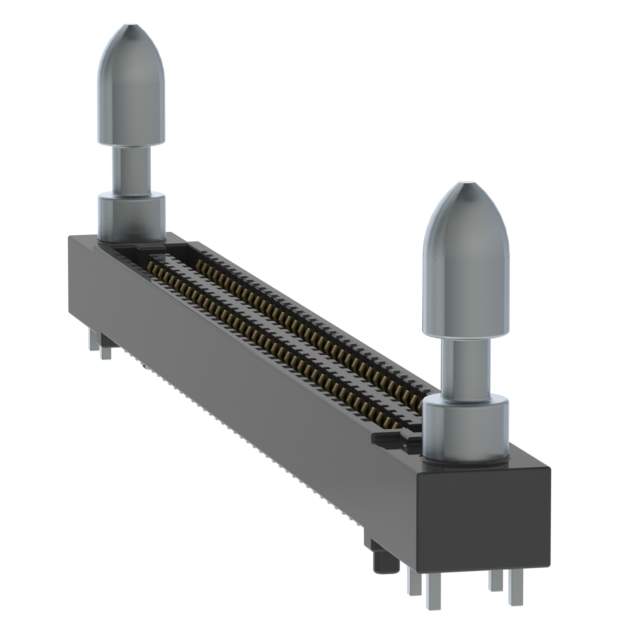

SEAF-40-05.0-S-04-1-A-LP-K-TR

Name: SEAF-40-05.0-S-04-1-A-LP-K-TR
Brand: Samtec Inc.
SKU: 1293735
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	SEAF-40-05.0-S-04-1-A-LP-K-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Datasheet	SEAF-40-05.0-S-04-1-A-LP-K-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr	Samtec Inc.
Series	SEARAY™ SEAF
Package	Tape & Reel (TR)
Connector Type	High Density Array, Female
Number of Positions	160
Pitch	0.050" (1.27mm)
Number of Rows	4
Mounting	SMD (SMT)
Features	Board Guide, Latches, Pick and Place
Contact Finish	Gold
Contact Finish Thickness	30.0µin (0.76µm)
Mated Stacking Heights	7mm, 8mm, 8.5mm, 11.5mm, 12mm, 14mm, 16mm, 18mm
Height Above Board	0.199" (5.05mm)
Base Product Number	SEAF-40
Standard Package	100
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1293735-SEAF-40-05.0-S-04-1-A-LP-K-TR
Ultra Librarian 3D Model	Ultra Librarian SEAF-40-05.0-S-04-1-A-LP-K-TR CAD Model

Alternative Products

Description

This electronic component is a rectangular connector array with part number 1293735-SEAF-40-05.0-S-04-1-A-LP-K-TR from Samtec Inc.

Number of Positions: 160
Pitch: 0.050 inches (1.27mm)
Connector Type: High density array, female
Number of Rows: 4
Contact Finish: Gold
Contact Finish Thickness: 30.0 microns (0.76 microns)
Package: Tape and reel (TR)
Height Above Board: 0.199 inches (5.05mm)
Standard Package: 100
Mounting: SMD (SMT)
Temperature Range-Operating: -55 degrees Celsius to 125 degrees Celsius
