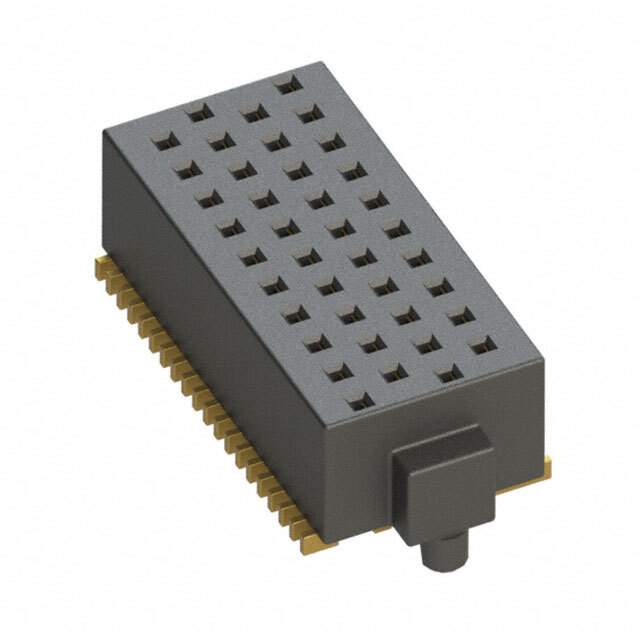

SOLC-110-02-L-Q-A Real Image
Same model may have multiple batches, images only for reference.

SOLC-110-02-L-Q-A

Part No SOLC-110-02-L-Q-A
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Datasheet
SOLC-110-02-L-Q-A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr Samtec Inc.
Series FOURRAY™ SOLC
Package Tube
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 40
Number of Positions Loaded All
Pitch - Mating 0.050" (1.27mm)
Number of Rows 4
Row Spacing - Mating 0.050" (1.27mm)
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Insulation Color Black
Insulation Height 0.160" (4.06mm)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Board Guide
Current Rating (Amps) 2.4A per Contact
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Contact Material Phosphor Bronze
Contact Finish Thickness - Post 3.00µin (0.076µm)
Base Product Number SOLC-110
Other Names SOLC-110-02-L-Q-A,SAM12872
Standard Package 37
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1293048-SOLC-110-02-L-Q-A
Ultra Librarian 3D Model Ultra Librarian SOLC-110-02-L-Q-A CAD Model

Description

The FOURRAY™ SOLC series connector is a receptacle type connector with 40 positions and 4 rows.

  • Feature: Board Guide
  • Contact Type: Forked
  • Positions Loaded: All
  • Fastening Type: Push-Pull
  • Voltage Rating: -
  • Insulation Material: Liquid Crystal Polymer (LCP)
  • Contact Material: Phosphor Bronze
  • Contact Finish Thickness (Mating): 10.0µin (0.25µm)
  • Contact Finish Thickness (Post): 3.00µin (0.076µm)
  • Pitch (Mating): 0.050" (1.27mm)
  • Row Spacing: 0.050" (1.27mm)
  • Applications: Board to Board
  • Operating Temperature Range: -55°C to 125°C
